NOTES: Page still under development, but we’re getting pretty close to done.
^  Please comment; what you like, what you don’t.

Sabre Engines Ltd, >OoB? 2009? >Perkins Marine Power (Caterpillar)
Sabre Engines Ltd was to be acquired by Perkins parent company Caterpillar in 2000. More from Perkins.

Primary Marinizers of Ford Industrial Power Diesel Engines

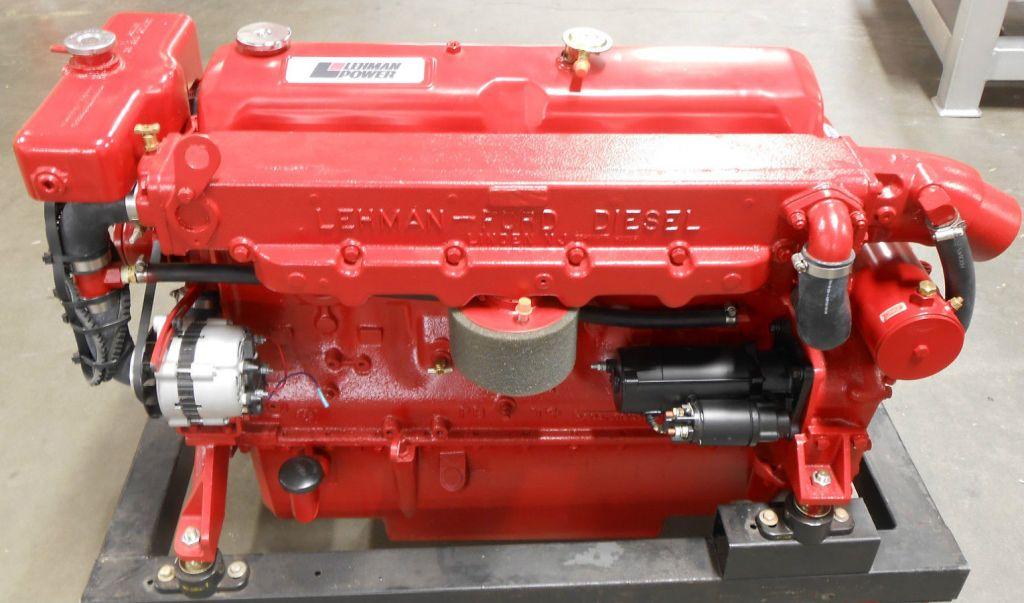

Lehman 120

6.22L LEHMAN 120 (FORD 2715E)

  • Lehman Mfg Co ⇐ SEE “Fixes” that need to be accomplished to prevent engine damage
  • American Marine Ltd (Mfr of Grand Banks)
  • Beta Marine
  • Bomac
  • Lancing Marine
  • Mermaid
  • Northeast Ford Engines Inc
  • Parsons
  • Powermarine
  • Sabre
  • American Diesel Corp
    In 1981, Bob Smith, who was the former managing director of Lehman Power, founded American Diesel Corp in Kilmarnock, VA to provide aftermarket marinizing replacement parts and support for Lehman marinized Ford Industrial Power (UK) diesel engines. They also produced their own marinized replacement engine packages from the last of the Non-EPA Ford 6.22L (Ford Otosan) engines similar to the Ford-Lehman Super 135’s. They were first rated at 125 hp and then later at 140 hp. American Diesel Corp can supply most of the parts required to accomplish the “Fixes” listed at Lehman Mfg Co that need to be accomplished to prevent engine damage. The americandieselcorp.com website has recently been updated with new features including Parts Lists, Parts Order Form, and Contact Form.

Engine Rebuilders and Repair Shops that are committed to supporting the Ford marine diesel engines

Bomac (100 miles north of Atlanta, Georgia in Blairsville, Ga, USA)
Harbor Marine (in Everett, WA, USA)
Logan Diesel (14 miles north of Jackson, Michigan in Leslie, MI, USA)
If you know of a business that should be added to this list, email the info to:
Editor@AbsolutelyEverythingAboutBoats.Com or just put it in the Comments Box below.


Specifications for Ford Industrial Power Products
4-Stroke Cycle Lorry & Tractor Diesel Engines
And Popular Marinized Versions of These Engines

Click on Links for Model Pages with Spec Sheets, Manuals, etc.

TABLE KEY: (? = Not Published)
CYL = Cylinder Configuration-Number−Liner: IL = Vertical In-Lined
−CYL: W = Wet Liners, D = Dry Liners, P = Parent Bore
MODEL – CODE: Single Engine Code Letter. Cylinder Block Capacity ID Code. TC=Turbocharged
RATING: W = Workboat (Usually 90% of P), C = Continuous, P = Pleasure (Intermittent)
^RATING: CA = Continuous “A”, CB = Continuous “B”, BS = HP, BS Oveload = BHP in Overload
ASP: NA = Naturally Aspirated, T = Turbocharged, TIs = Turbocharged and Intercooled (Seawater)
-ASP: TII = Turbocharged and Twin Flow Intercooled
KW = Kilowatts, BHP = Brake Horsepower, MHP = Metric Horsepower
@RPM = Power Ratings @ Revolutions Per Minute
YEARS MFR’D: Beginning-Ending, Trailing  “–”  (Dash) without an Ending Date = Still in Production

Dagenham Series (1952-1965) D Range + EBRO (1965-1999?) 4D


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 4D IL-4−W 100mm 114.7mm 3.937in 4.516in 3.605L / 220ci
FORD 4D IL-4−W 100mm 114.9mm 3.937in 4.524in 3611cc / 220ci
FORD MODEL ASP KW BHP MHP @RPM YEARS MFR'D
E1A (Fordson Major) NA ? 40? ? 2400 1952-1964
592E (Industrial) NA ? 40? ? 2400 1952-1965
592E (Industrial) NA ? 57 ? 2250 1952-1965
592E? (Weatherill L60) NA ? 62 ? 2250 1952?-1965?
EBRO MODEL ASP KW BHP MHP @RPM YEARS MFR'D
4D 592E NA 41 ? ? ? 1965-1999?
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
4D220 – ? − W NA ? ? ? 2400? 1952?-1999?
4D220 – ? − P NA ? ? ? 2400? 1952?-1999?
PARSONS MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Porbeagle − C NA ? 52 ? 2250 1957?-1965?
NOTES: Various Data sources list slightly different Stroke (& different Displacement). Some data is from Ford 592E/590E Series Service Manual (from FoleyEngines). Fuel injection pump is driven by a short external rotating Jaw Coupling Spider of either nylon or rubber. The coupling was usually covered  by a thin metal guard. Raw water pump is driven by injection pump. The single lower seal on the wet cylinder liners tend to fail, leaking coolant into the crankcase. Designed for Thames ET6/7 Lorries and also fitted to Fordson tractors. Engines were fitted with the “FL” Heads from 1963 in which the inlet ports were modified to give greater swirl and turbulence to air entering the cylinders. The FL head Part No E1ADDN-6052-J can be identified by the letters “FL” embossed on the right hand side between Nos. 1 and 2 injectors. Some info from ukTracktorPulling.co.uk. According to Lancing Marine (Pricebook pg 5), when production of the Ford 4D ceased at Dagenham in 1964, Ford sent the tooling to EBRO in Spain where production resumed and continued under license thru the 1990’s. Lehman subsequently marinised a number of new 4Ds in the 70s & 90s as the 4D220. According to FordsonTracterPages.nl Forum, EBRO is still a good source of parts for the 4D. The 4D was basically the 6D less two cylinders with several parts common to both.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 6D IL-6−W 100mm 114.7mm 3.937in 4.516in 5.408L / 330ci
FORD 6D IL-6−W 100mm 114.9mm 3.937in 4.524in 5416cc / 330ci
FORD MODEL ASP KW BHP MHP @RPM YEARS MFR'D
510E (Trader) NA ? 105? ? 2400? 1957-1965
590E (Industrial) NA ? 105? ? 2400? 1957-1965
590E (Industrial) NA ? 85 ? 1800 1957-1961
590E (Industrial) NA ? 86.5 ? 2250 1957-1961
590E (Industrial) NA ? 100 ? 2400 1957-1961
590E (Ind w/FL Head) NA ? 108 ? 2400 1962-1965
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
6D330? – ? − W NA ? ? ? 2400? 1952-1965
6D330? – ? − P NA ? ? ? 2400? 1952-1965
PARSONS MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Marlin − C NA ? 65 ? 1800 1957-1965?
Barracuda − C NA ? 86 ? 2250? 1957-1965?
Barracuda Turbo − C T ? 108 ? 2250? 1957-1965?
NOTES: Various Data sources list slightly different Stroke (& different Displacement). Some data is from Ford 592E/590E Series Service Manual (from FoleyEngines) & FordsonTractorPages. Fuel injection pump is driven by a roughly 6″ long external drive shaft (see pictures of Fordson tracters below). Raw water pump is driven by injection pump. The single lower seal on the wet cylinder liners tend to fail, leaking coolant into the crankcase. Designed for Thames Trader lorries. Tractors were originally produced with only the 4 cylinder engine, however some tracters have been fitted with the 6D and later 6 cylinder diesel engines. Engines were fitted with the “FL” Heads from 1962 in which the inlet ports were modified to give greater swirl and turbulence to air entering the cylinders. The FL head Part No 510E-6052-C can be identified by the letters “FL” embossed on the right hand side between Nos. 1 and 2 injectors. Some info from ukTracktorPulling.co.uk. According to Lancing Marine (Pricebook pg 5), when production of the Ford 4D & 6D ceased at Dagenham in 1964, Ford sent the tooling to EBRO in Spain where production of the 4D resumed and continued under license thru the 1990’s. According to FordsonTracterPages.nl Forum, EBRO is still a good source of parts for the 4D and those 6D parts that are common with the 4D. The 6D was basically the 4D with two more cylinders.

Note the exposed shafts driving the fuel injection pumps below.

1963 Fordson Major  1955 Fordson Major
1963 Fordson Tractor with 4D Diesel Engine & 1955 Fordson Tractor refitted with 6D Diesel Engine

The fuel injection pumps on 2700+ engines (1965+) were gear driven directly
without any exposed couplings or extension shafts (see below).

Lehman 4cylLehman marinized FORD 2701E with directly driven fuel injection pump (no external drive shaft).
Also note that the remote oil filter (which had been inverted for shipping) is now righted.
But “Two Shaft” Raw Water Pump has yet to be replaced with “Single Shaft” Pump to avoid shaft failure.
See other Lehman “Fixes” that need to be accomplished to prevent engine damage at Lehman Mfg Co.

Early Dorset Series (1965-1969+) 2700 Range


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2701E IL-4−D 105mm 114.7mm 4.125in 4.516in 3.933L / 240ci
FORD 2701E IL-4−D 105mm 115mm 4.125in 4.524in 3.964L / 241ci
FORD 2701E IL-4−D 105mm 114.7?mm 4.125in 4.516?in 3.964L / 242ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2701E − CA NA ? 63c ? 2500 1965-1969
2701E − CB NA ? 70c ? 2500 1965-1969
2701E − BS NA ? 64 ? 2500 1965-1969
2701E − BS Overload NA ? 71 ? 2500 1965-1969
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
4D242 – E − W? NA ? ? ? 2500 1965-1969
4D242 – E − C? NA ? 64?c ? 2500 1965-1969
4D242 – E − P? NA ? 71? ? 2500 1965-1969
PARSONS MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Pike II − C NA ? 65 ? 2500 1957?-1965?
Porbeagle II − C NA ? 65 ? 2500 1957?-1965?
NOTES: Various Data sources list slightly different B&S, Displacement, etc. Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual. Cylinder Block Part Number 683F-6010AAB. These engines were fitted in D Series Lorries. The 2701E is not to be confused with the larger parent bore 2701C which was the immediate forerunner of the 2711E.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2701C IL-4−P 107mm 115mm 4.22in 4.524in 4.15L / 254ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2701C − CA NA ? 59? ? 2500 1965?-1969
2701C − CB NA ? 65? ? 2500 1965?-1969
2701C − BS NA ? 64? ? 2500 1965?-1969
2701C − BS Overload NA ? 71? ? 2500 1965?-1969
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
4D254? – E? − W? NA ? 59? ? 2500 1965?-1969
4D254? – E? − C? NA ? 64? ? 2500 1965?-1969
4D254? – E? − P? NA ? 71? ? 2500 1965?-1969

NOTES: Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual. ¿These engines were fitted in D Series Lorries? The 2701E is not to be confused with the larger parent bore 2701C which was the immediate forerunner of the 2711E.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2703E IL-6−D 100mm 114.7mm 3.937in 4.516in 5.408L / 330ci
FORD 2703E IL-6−D 100mm 115mm 3.937in 4.524in 5.146L / 330.5ci
FORD 2703E IL-6−D 100mm 114.7mm 3.937in 4.516in 5.416L / 330ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2703E − CA NA ? 85.5c ? 2500 1965-1969
2703E − CB NA ? 98.5c ? 2500 1965-1969
2703E − BS NA ? 89.5 ? 2500 1965-1969
2703E − BS Overload NA ? 99.5 ? 2500 1965-1969
2703E? (Truck) NA ? 102.5 ? 2800 1965-1969
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
6D330? – ? − C NA ? 89.5?c ? 2500 1965-1969
6D330? – ? − P NA ? 99.5? ? 2500 1965-1969
6D330?TI? – ? − P TI ? 180 182 2500 1969?-1974
NOTES: Various Data sources list slightly different B&S, Displacement, etc. Data from Ford 2700 Series Service Manual (Dated 6/79) & FordsonTractorPages. These engines were fitted in D & K Series Lorries, & R Series Busses. The 2703E is not to be confused with the larger parent bore 2703C which was the immediate forerunner of the 2713E.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2703C IL-6−P 107mm 115mm 4.22in 4.524in 5.95L / 363ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2703C − CA NA ? 85.5? ? 2500 1965?-1969
2703C − CB NA ? 94.5? ? 2500 1965?-1969
2703C − BS NA ? 90? ? 2500 1965?-1969
2703C − BS Overload NA ? 100? ? 2500 1965?-1969
? MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
? – ? − C NA ? 90 ? 2500 1969-1981
? – ? − P NA ? 100 ? 2500 1969-1981
NOTES: Data from Ford 2700 Series Service Manual (Dated 6/79). ¿These engines were fitted in D Series Lorries? The 2703E is not to be confused with the larger parent bore 2703C which was the immediate forerunner of the 2713E.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2704E IL-6−D 105mm 114.7mm 4.125in 4.516in 5.899L / 360ci
FORD 2704E IL-6−D 105mm 114.7mm 4.125in 4.516in 5.945L / 360ci
FORD 2704E IL-6−D 105mm 115mm 4.125in 4.524in 5.945L / 362.8ci
FORD 2704E IL-6−D 105mm 115mm 4.125in 4.524in 5.945L / 363ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2704E − CA NA ? 96.5c ? 2500 1965-1969
2704E − CB NA ? 107.5c ? 2500 1965-1969
2704E − BS NA ? 98 ? 2500 1965-1969
2704E − BS Overload NA ? 108.5 ? 2500 1965-1969
2704E? (Truck) NA ? 113.5 ? 2800 1965-1969
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
6D363? – F − C NA ? 98?c ? 2500 1965-1969
6D363? – F − P NA ? 108.5 ? 2500 1965-1969
6D363?TC? – F − ? TIs ? 150 152 2500 1968-1982
?TI? – F − ? TIs ? 180 182 2500 196?-1974
NOTES: Various Data sources list slightly different B&S, Displacement, etc. Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual & FordsonTractorPages. Cylinder Block Part Number 703F-6010BA. These engines were fitted in D & K Series Lorries, & R Series Busses. The 2704E is not to be confused with the larger parent bore 2704C which was the immediate forerunner of the 2714E.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2704C IL-6−P 107mm 115mm 4.22in 4.524in 6.22L / 380ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2704C − CA NA ? 93? ? 2500 1965?-1969
2704C − CB NA ? 105? ? 2500 1965?-1969
2704C − BS NA ? 97.5? ? 2500 1965?-1969
2704C − BS Overload NA ? 108.5? ? 2500 1965?-1969
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
6D380? – F − C NA ? 93? ? 2500 1965?-1969
6D380? – F − P NA ? 105? ? 2500 1965?-1969
NOTES: Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual. ¿These engines were fitted in D Series Lorries? The 2704E is not to be confused with the larger parent bore 2704C which was the immediate forerunner of the 2714E.

Late Dorset Series (1969-1982) 2710 Range
+ Late 2704E, ET, & Turbo Plus


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2711E IL-4−P 107mm 115mm 4.22in 4.524in 4.15L / 254ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2711E − CA NA ? 59 ? 2500 11969-1981
2711E − CB NA ? 65 ? 2500 1969-1981
2711E − BS NA ? 64 ? 2500 1969-1981
2711E − BS Overload NA ? 71 ? 2500 1969-1981
AMMARINE MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
254? − C NA ? 64.2 ? 2500 1969-1981
254? − P NA ? 71 ? 2500 1969-1981
NOTES: Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual. 4D254-C&P HP data from OpManual. Fitted with Simms Minimec P???? Injection Pump, angle cut timing gears and pressed steel timing gear cover. While this engine is similar to the popular 4 cylinder Lehman 80, it is actually the “Econo” reduced horsepower version of the 2712E below, and it was marinized by American Marine Ltd with Lehman marinizing kits in the ’70s for use in their Grand Banks trawlers. The 2701C was the immediate forerunner of the 2711E.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2712E IL-4−P 107mm 115mm 4.22in 4.524in 4.15L / 254ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2712E − CA NA ? 66 ? 2500 1969-1981
2712E − CB NA ? 74 ? 2500 1969-1981
2712E − BS NA ? 72 ? 2500 1969-1981
2712E − BS Overload NA ? 80 ? 2500 1969-1981
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
4D254 (Lehman 80) – G − W NA ? 72 80 2500 1969-1981
4D254 (Lehman 80) – G − W NA 59 79 80 2500 1969-1981
4D254 (Lehman 80) – G − C NA ? 74.2 ? 2500 1969-1981
4D254 (Lehman 80) – G − P NA ? 80 ? 2500 1969-1981
4D254 (Lehman 80) – G − 6270 C NA ? 74.2 ? 2500 1969-1981
4D254 (Lehman 80) – G − BS Overload NA ? 80 ? 2500 1969-1981
PARSONS MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Pike II − C NA ? 72 ? 2500 1969?-1981?
Porbeagle II − C NA ? 72 ? 2500 1969?-1981?
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
397 − PC NA ? 72 ? 2500 1982-1984
397 − PI NA ? 80 ? 2500 1982-1984
Melody − C NA ? 76 ? 2250 1982-1984
Melody − P NA ? 80 ? 2500 1982-1984
Flat-Four − C NA ? 72 ? 2500 1982-1984
Flat-Four − C NA ? 76 ? 2250 1982-1984
Flat-Four − P NA 59 79 80 2500 1982-1984
NOTES: Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual. 4D254-W HP data from BoatDiesel, 4D254-C&P HP data from OpManual. Fitted with Simms Minimec P???? Injection Pump, angle cut timing gears and pressed steel timing gear cover. This model powered Cargo Lorries. This is the popular engine marinized by Lehman and known as the Lehman 80.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2713E IL-6−P? 105mm 115mm 4.125in 4.524in 5.95L / 363ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2713E − CA NA ? 85.5 ? 2500 1969-1981
2713E − CB NA ? 94.5 ? 2500 1969-1981
2713E − BS NA ? 90 ? 2500 1969-1981
2713E − BS Overload NA ? 100 ? 2500 1969-1981
2713E? (Truck) NA ? 103 ? 2800 1969-1981
? MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
? – ? − C NA ? 90 ? 2500 1969-1981
? – ? − P NA ? 100 ? 2500 1969-1981
NOTES: Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual. The 2703C was the immediate forerunner of the 2713E.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2714E IL-6−P 107mm 115mm 4.22in 4.524in 6.22L / 380ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2714E − CA NA ? 93 ? 2500 1969-1981
2714E − CB NA ? 105 ? 2500 1969-1981
2714E − BS NA ? 97.5 ? 2500 1969-1981
2714E − BS Overload NA ? 108.5 ? 2500 1969-1981
AMMARINE MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
380? − C NA ? 97.5 ? 2500 1969-1981
380? − P NA ? 108.5 ? 2500 1969-1981
NOTES: Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual. 6D380-C&P HP data from OpManual. Fitted with Simms Minimec P5088 Injection Pump, angle cut timing gears and pressed steel timing gear cover. While this engine is similar to the popular 6 cylinder Lehman 120, it is actually the “Econo” reduced horsepower version of the 2715E below, and it was marinized by American Marine Ltd with Lehman marinizing kits in the ’70s for use in their Grand Banks trawlers. They painted  them AmMarine (golden or yellowish) Green. The 2704C was the immediate forerunner of the 2714E.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2715E IL-6−P 107mm 115mm 4.22in 4.524in 6.22L / 380ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2715E? (Truck) NA ? 113 ? 2800 1969-1981
2715E − CA NA ? 102.5 ? 2500 1969-1981
2715E − CB NA ? 114.5 ? 2500 1969-1981
2715E − BS NA ? 108 ? 2500 1969-1981
2715E − BS Overload NA ? 120 ? 2500 1969-1981
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
6D380 (Lehman 120) – H − W NA 88 118 120 2500 1969-1981
6D380 (Lehman 120) – H − C NA ? 114.5 ? 2500 1969-1981
6D380 (Lehman 120) – H − C NA ? 108 ? 2500 1969-1981
6D380 (Lehman 120) – H − P NA ? 120 ? 2500 1969-1981
6D380 (Lehman 120) – H − 6270 C NA ? 114.5 ? 2500 1969-1981
6D380 (Lehman 120) – H − BS Overload NA ? 120 ? 2500 1969-1981
PARSONS MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Barracuda II − C NA ? 108 ? 2500 1969?-1981?
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Mariner − PI NA ? 120 ? 2500 1969-1982
Flat-Six − C NA ? 101.5 ? 2500 1969-1982
Flat-Six − PC NA 79 107 108 2500 1969-1982
Flat-Six − PI NA ? ? 120 2500 1969-1982
NOTES: Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual. 6D380-W HP data from BoatDiesel, 6D380-C&P HP data from OpManual. Fitted with Simms Minimec P5130 Injection Pump, angle cut timing gears and pressed steel timing gear cover. This model powered Cargo lorries. This is the popular engine marinized by Lehman and known as the Lehman 120.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2704ET IL-6−D 105mm 115mm 4.125in 4.524in 5.945L / 360ci
FORD 2704ET IL-6−D 105mm 115mm 4.125in 4.524in 5.95L / 363ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2704ET? (Truck) T ? 141.5 ? 2400 1969?-1980
2704ET (Ind & Marine) − BH T ? 150 152 2400 1968-1981?
2704ET (Ind & Marine) − PS T ? 152 ? 2400 1968-1981?
2704ET Intercooled − BH TIs ? 180 ? 2450 1968-1974?
2704ET Intercooled − PS TIs ? 182 ? 2450 1968-1974?
2704ET Turbo Plus − BH TIs ? 250 ? 2450 1968-1981?
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
6D363T – I − W T 110 148 150 2400 1968-1981?
6D363T – I − C T ? 136.5 ? 2400 1968-1981?
6D363T – I − P T ? 150 152 2400 1968-1981?
6D363T – I − BS T ? 136.5 ? 2400 1968-1981?
6D363T – I − 6270 C T ? 136.5 ? 2400 1968-1981?
6D363T – I − BS Overload T ? 150 ? 2400 1968-1981?
6D363T – I − P? TIs ? 180 182 2450 1968-1974?
6D363T – I − PS TIs ? 152 ? 2400 1968-1981?
6D363T – I − BH TIs ? 150 ? 2400 1968-1981?
PARSONS MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Force 12 − C T ? 158 ? 2450 1968?-1981?
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Mistral − PI T ? 150 ? 2400 1968-1982?
Mistral − W T 110 148 150 2400 1968-1982?
595-ET − PC TI 110 148 150 2400 1982-1991
595-ET − PI TI ? 150 ? 2400 1982-1991
595-ET − PC TI ? 135 ? 2400 1982-1991
595-ET − PI TI ? 150 ? 2400 1982-1991
595-ET-INT − PI TI ? 180 ? 2450 1982-1991
595-ET-INT − PC TI ? 162 ? 2450 1982-1991
595-ET-INT − P TI 132 178 180 2450 1982-1991
595-ET-210 − P TI 139 186 189 2450 1982-1991
595-ET-210 − PC TI ? 189 ? 2450 1982-1991
595-ET-210 − PI TI ? 214 ? 2450 1982-1991
595-TP (Turbo Plus) − PC TI ? 250? ? 2450 1982-1991
Majestic − P? TI ? 180 182 2500 1968-1974?
NOTES: Various Data sources list slightly different B&S, Displacement, etc. Data from Ford 2700 Series Service Manual (Dated 6/79) & Sabre Lehman OpManual & FordsonTractorPages. 6D363T-W HP data from BoatDiesel, TC-C&P HP data from OpManual. It had chromed cylinder liners, stronger head bolts and connecting rods.

Dover Series (1982-1991+) 2720 (ESD) Range


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2722E IL-4−P 107mm 115mm 4.22in 4.524in 4.150L / 254ci
FORD MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2722E (ESD-442) – 255 − C NA 52.8 ? ? 2600 1982-1991
2722E (ESD-442) – 255 − I NA 58.5 ? ? 2600 1982-1991
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
SP90 (Super 90) – R − W NA 60 81 82 2600 1982-1991
SP90 (Super 90) – R − P NA 67 90 91 2600 1982-1991
SABRE MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
80C − Pro NA 59 80 ? 2600 1982?-1991?
90L − Leasure NA 66 90 ? 2600 1982?-1991?
160C − Pro TI 118 160 ? 2400 1982?-1991?
190L − Leasure TI 140 190 ? 2400 1982?-1991?
BETA MODEL ASP KW HP MHP @RPM YEARS MFR'D
BD4 (UK) NA 63 84 86 2600 199?-?
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Melody − P NA ? 80 ? 2500 1982?-1984?
Melody − P NA 66 89 90 2600 1982?-1984?
Melody − W NA ? 77 ? 2600 1982-1987
Melody − P NA ? 85 ? 2600 1982-1987
Melody − W NA ? 81 ? 2600 1988-1994
Melody − P NA ? 90 ? 2600 1988-1994
Turbo-Four-105 − PC T ? 94 ? 2500 1982-1984
Turbo-Four-105 − PI T ? 105 ? 2500 1982-1984
Turbo-Four-130 − PC TI ? 94 ? 2500 1982-1984
Turbo-Four-130 − PI TI ? 130 ? 2500 1982-1984
Turbo-Four − PI TI ? 140 ? 2600 1982-1984
Turbo-Four − C TI 105 140 ? 2600 1982-1984
Turbo-Four − W TI 116 155 ? 2600 1982-1984
Turbo-Four − PC TI ? 160 ? 2600 1982-1984
Turbo-Four − C TI ? 162 ? 2600 1982-1984
Turbo-Four − PI TI ? 180 ? 2600 1982-1984
Turbo-Four − P TI 116 155 ? 2600 1982-1984
Turbo-Four − P TI 149 200 203 2500-2600 1982-1984
Turbo-Four − P TI 149 (140) 200 203 2500 1982-1984
Turbo-Four − P TI 149 200 203 2500 1982-1984
Turbo-Four − PI TI ? 200 ? 2600 1982-1984
NOTES: Data from Ford 2720 Range OpManual (Dated 11/88) & Ford ESD Service Manual. W&P & Sabre data from BoatDiesel.com. Straight cut timing gears and aluminum timing gear cover.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2723E IL-6−D 105mm 115mm 4.125in 4.52in 5.9L / 362ci
FORD 2723E IL-6−D 105mm 115mm 4.125in 4.52in 5.95L / 363ci
FORD MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2723E (ESD-659) – 365NA − C NA 68.8 ? ? 2500 1982-1991
2723E (ESD-659) – 365NA − I NA 76.2 ? ? 2500 1982-1991
NOTES: Data from Ford 2720 Range OpManual (Dated 11/88) & Ford ESD Service Manual. W&P & Sabre data from BoatDiesel.com. Straight cut timing gears and aluminum timing gear cover.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2725E IL-6−P 107mm 115mm 4.22in 4.52in 6.22L / 380ci
FORD MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2725E (ESD-662) – 380NA − C NA 81.4 ? ? 2600 1982-1991
2725E (ESD-662) – 380NA − I NA 90 ? ? 2600 1982-1991
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
STD120 (Lehman 120 Dover) – R − W NA ? ? ? 2500 1982-1991
STD120 (Lehman 120 Dover) – R − P NA ? 120 ? 2500 1982-1991
SP135 (Super 135) – N − W NA 91 122 123 2600 1982-1991
SP135 (Super 135) – N − P NA 101 135 137 2600 1982-1991
SABRE MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
120C − Pro NA 88 120 ? 2600 1982?-1991?
135L − Leasure NA 99 135 ? 2600 1982?-1991?
190L − Leasure TI 140 190 ? 2400 1982?-1991?
BETA MODEL ASP KW HP MHP @RPM YEARS MFR'D
BD6 (UK) NA 96 128 130 2600 199?-?
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Mariner − W NA ? 115 ? 2600? 1982-1987
Mariner − P NA ? 128 ? 2600? 1982-1987
Mariner − W NA ? 122 ? 2600 1987-1995+
Mariner − P NA 101 135 137 2600 1987-1995+
Mariner (DoverTech) − P NA 101 135 137 2600 1987?-1995?+
AMERICAN DIESEL MODEL ASP KW BHP MHP @RPM YEARS MFR'D
6N125? NA ? 125 ? 2600 19??~20??
6N140? NA 104.51 140 142 2600 1996~20??
NOTES: Data from Ford 2720 Range OpManual (Dated 11/88) & Ford ESD Service Manual. W&P $ Sabre data from BoatDiesel.com.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2726T IL-6−D 105mm 115mm 4.125in 4.524in 5.95L / 363ci
FORD 2726T IL-6−D 105mm 115mm 4.125in 4.524in 6.0L / 363ci
FORD MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2726T (ESD-660T) – 365TC − C T 97.1 ? ? 2400 1982-1991
2726T (ESD-660T) – 365TC − I T 107.5 ? ? 2400 1982-1991
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
SP160 (Super 160) – O − W T ? ? ? 2500 1982-1991
SP160 (Super 160) – O − P T ? 160 ? 2500 1982-1991
SP185 (Super 185) – S − W T 124 166 169 2500 1982-1991
SP185 (Super 185) – S − P T 138 185 188 2500 1982-1991
SABRE MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
180C − Pro TI? 132 180 ? 2500 1982?-1991?
225L − Leasure TI? 165 225 ? 2500 1982?-1991?
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Mistral − W T ? 146 ? 2500? 1982-1984
Mistral − P T ? 160 ? 2500? 1982-1984
Mistral − PC T ? 162 ? 2500 1982?-1991?
Mistral − PC T ? 158 ? 2500 1985-1987
Mistral − PI T 130 175 ? 2500 1985-1987
Mistral − P T ? 167 ? 2500 1988-1995+
Mistral − P T 138 185 188 2500 1988-1995+
Mistral (2726) − PI T ? 185 ? 2500 1988-1995+
Mistral (Dover) − PI T ? 185 ? 2500 1988-1995+
Majestic − PC TI ? 169 ? 2500 1982-1984
Majestic − PI TI ? 188 ? 2500 1982-1984
Majestic − PC TI ? 180 ? 2500 1985-1987
Majestic − PI TI ? 200 ? 2500 1985-1987
Majestic − PC TI ? 191 ? 2500 1988-1995+
Majestic − PI TI ? 212 ? 2500 1988-1995+
NOTES: Ford data from Ford 2720 Range OpManual (Dated 11/88) & Ford ESD Service Manual. W&P & Sabre data from BoatDiesel.com. 363ci is sometimes shown as 5.9L, 5.95L or 6.0L. Some marinized engines may produce slightly different power then listed here as they may be fitted with different turbos & exhaust systems.

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2728T IL-6−D 105mm 115mm 4.125in 4.524in 5.95L / 363ci
FORD 2728T IL-6−D 105mm 115mm 4.125in 4.524in 6.0L / 363ci
FORD MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
2728T (ESD-660T) – 365TC − C TI 135.5 ? ? 2450 1982-1991
2728T (ESD-660T) – 365TC − I TI 149 ? ? 2450 1982-1991
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
SP225 (Super 225) – P − W TI 151 203 205 2450 1982-1991
SP225 (Super 225) – P − P TI 168 225 228 2450 1982-1991
SP275 (Super 275) – T − W TII 185 247 251 2500 1982-1991
SP275 (Super 275) – T − P TII 205 275 279 2500 1982-1991
SABRE MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
212C ?− Pro TI 156 212 ? 2500 1982?-1991?
250 ?− ? TI 186 250 ? 2500 1982?-1991?
255C ?− Pro TI 188 255 ? 2500 1982?-1991?
275L ?− Leasure TI 202 275 ? 2500 1982?-1991?
280C ?− Pro TI 260 280 ? 2500 1982?-1991?
320L ?− Leasure TI 235 320 ? 2650 1982?-1991?
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Monarch − W TI ? 180 ? 2600 1982-1984
Monarch − P TI ? 200 ? 2600 1982-1984
Monarch − W TI ? 207 ? 2600 1985-1987
Monarch − P TI ? 230 ? 2600 1985-1987
Monarch − W TI 151 203 205 2450 1982?-1991?
Monarch − W TI ? 225 ? 2450 1988-1995+
Monarch − P TI 186 250 253 2600 1988-1995+
Monarch − PI TI ? 250 ? 2600 1988-1995+
595-TP (Turbo Plus) − PC TI ? ? ? 2450 1982-1991
595-TP (Turbo Plus) − PI TI 184 247 250 2450 1982-1991
Turbo Plus − W TI ? 234 ? 2500 1982-1984
Turbo Plus − P TI ? 260 ? 2500 1982-1984
Turbo Plus − W TI ? 248 ? 2500 1985-1987
Turbo Plus − PI TI ? 275 ? 2500 1985-1987
Turbo Plus − W TI 185 247 251 2500 1988?-1994?
Turbo Plus − W TI ? 270 ? 2500 1988-1995+
Turbo Plus − P TI 224 300 304 2500 1988-1995+
NOTES: Ford data from Ford 2720 Range OpManual (Dated 11/88) & Ford ESD Service Manual. W&P & Sabre data from BoatDiesel.com. 363ci is sometimes shown as 5.9L, 5.95L or 6.0L. SP225 is sometimes rated at 2500 rpm. SP275 is Twin Flow Intercooled. Some marinized engines may produce slightly different power then listed here as they may be fitted with different turbos & exhaust systems. Sabre Pro & Leasure data from BoatDiesel.com.

Ford Power Products? “Genesis?” Series (1992-2008?) BSD Range


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
Ford BSD 333 IL-3-P 111.7mm 106.7mm 4.4in 4.2in 3150cc / 3.15L / 192ci
FORD MODEL – RATING ASP KW SHP MHP @RPM YEARS MFR'D
BSD 333 – Con NA ? 49 ? 2200 199?-?
BSD 333 – Int NA ? 60 ? 2500 199?-?
BETA MODEL ASP KW HP MHP @RPM YEARS MFR'D
BD3 (UK) NA 42 56 56 2500 199?-?
Table under Development
BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD BSD 444 IL-4−? ?mm ?mm ?in ?in 4.4L / ?ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
BSD 444? − ? NA ? ? ? ? 199?-?
BSD 444? − ? T ? ? ? ? 199?-?
BSD 444? − ? TI ? ? ? ? 199?-?

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD BSD 668? IL-6−? ?mm ?mm ?in ?in 6798cc / 6.798L / ?ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
BSD 668? − ? NA ? ? ? ? 199?-?
BSD 668? − ? T ? ? ? ? 199?-?
BSD 668? − ? TI ? ? ? ? 199?-?
SABRE MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
350C ?− Pro TI 257 350 ? 2600 1982?-1991?
370L ?− Leasure TI 272 370 ? 2600 1982?-1991?

Ford 7.8L Medium Duty Truck Engine

Ford 7.8L Medium Duty Truck Engine

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD BSD 678 IL-6−? 111.8mm 132.1mm 4.4in 5.2in 7.8L / 474ci
FORD MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
BSD 678? − ? NA ? ? ? ? 199?-?
BSD 678? − ? T ? ? ? ? 199?-?
BSD 678? − ? TI ? ? ? ? 199?-?
LEHMAN MODEL – CODE − RATING ASP KW BHP MHP @RPM YEARS MFR'D
SP355 (Super 355) – ? − W TI 238 319 324 2600 199?-?
SP355 (Super 355) – ? − P TI 265 355 360 2600 199?-?
SABRE MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
385C ?− Pro TI 283 385 ? 2500 1982?-1991?
430L ?− Leasure TI 317 430 ? 2500 1982?-1991?
BETA MODEL ASP KW HP MHP @RPM YEARS MFR'D
BD8 (UK) NA 112 150 152 2500 199?-?
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Manta − P NA 132 178 180 2600 19??-19??
Mirage − P TI 239 321 325 2600 19??-19??
Magnum − P TI 298 400 406 2600 19??-19??
NOTES: Twin Intercooled. The SP355 workboat rating is sometimes shown as 300 BHP at 2600 rpm. W&P, Pro & Leasure data from BoatDiesel.com.

Ford New Holland “Genesis” Series (1995?-?) (2002?-?)


New Holland was founded in 1895 by Mr. Abe Zimmerman in New Holland, PA, USA, and was purchased by the Sperry Corporation in 1947, to form Sperry-New Holland. In 1986, Ford bought New Holland from Sperry-Rand corporation to form Ford-New Holland. The Ford Motor company divested the Tractor division and Construction machinery to Fiat under the New Holland Brand in 1991. Fiat had until 2000 to stop using the Ford name on the tractor line. Fiat formed the new N.H.Geotec division, by merging Ford-New Holland and Fiat Geotec operations incorporating all tractor operations and agri businesses. In 1993 Ford-New Holland construction lines merged with Fiat-Hitachi construction. In 1996, N.H.Geotec  was rebranded as New Holland N.V. and listed on the NY stock exchange. In 1999, the Merger of Case and New Holland formed CNH Global. CNH products were sold under the following brands: Case CE, Case IH, Fiatallis, Fiat-Hitachi, Link-Belt (earth moving equipment), New Holland, O&K, Steyr and Kobelco. In 2008, production of the T series ended at the New Holland tractor plant in Basildon, England and the Engine production line was shut down. CNH then turned to engines from Italy.
More from tractors.wikia.com/wiki/Ford & tractors.wikia.com/wiki/New_Holland
BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD ? IL-4−? 112mm 127mm 4.41in 5.00in 5.0L / 304ci
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Melody-II − P NA 67 90 91 2200 1995?-?
Turbo-Melody-II − P TI 118 158 160 2500 1995?-?
Turbo-Melody-II − P TI 120 160 ? 2500 1995?-?
Turbo-Melody-II − PI TI ? 160 ? 2500 1995?-?
Turbo-Four-II − P TI 149-150 200 203 2500 1995?-?
Turbo-Four-II − PI TI ? 200 ? 2500 1995?-?

BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD ? IL-6−? 112mm 127mm 4.41in 5.00in 7.5L / 457ci
MERMAID MODEL − RATING ASP KW BHP MHP @RPM YEARS MFR'D
Manta-II − P NA 108 145 147 2100 2002?-?
Manta-II − P NA 119 160 162 2400 2002?-?
Mirage-II − P TI 239 321 325 2600 2002?-?
Mirage-II − P TI ? 325 ? 2500 2002?-?
Magnum-II − P TI ? 400 ? 2600 2002?-?

Tables Under Development
If you can help us add brand information, Spec Sheets, Manuals, etc. that we lack, please submit the link or PDF to Editor@AbsolutelyEverythingAboutBoats.com so we can add it to the website. Thanks.


Literature and Manuals

Sabre Lehman Operators Manual (Low-Res PDF) for 4D242, 4D254, 6D363,TC, 6D380 from:
^  www.I-36.com,
^  www.DiveMaster.ca
^  www.WhitbyBrewerSailboats.com
^  cruiserswiki.org
Sabre Lehman Operators Manual & Parts Appendix A & B (PDF) from:
^  www.gbwoodies,com
Lehman Operators Manual & Parts ID for SD80,SP90,SD120,SP135,SP160,SP225 from:
^  Nauticat.dk

Lehman Section A Base Engine Parts Book for 1965~1969 4 & 6 cylinder Base Engines from:
^  uktractorpulling.co.uk
^  cruiserswiki.org
Lehman Section B Marinizing Parts Book for 1965~1969 4 & 6 cylinder engines from:
^  cruiserswiki.org
Ford 2710 Range Operators Instruction Book w/Owner’s Parts List from:
^  Nauticat.dk
Ford 2720 Range Operator Handbook (Ed 8) for 4 & 6 Cylinder Diesel Engines from:
^  uktractorpulling.co.uk
Ford 2720 Range Instruksjonsbok (Danish) from:
^  Nauticat.dk
^  Nauticat.dk (second copy)
Ford 592E & 590E Service Manual from:
^  FoleyEngines.com
Ford 2700 Service Manual for 2701,3,4,11,12,13,14,15 (Printed 6/79) from:
^  uktractorpulling.co.uk
Ford 2700 Parts List (1967) for 2701E, 3E, 4E, 6E, 8E, 9E (PDF) from:
^  bf494.co.uk
^  uktractorpulling.co.uk

Ford ESD Service Manual for ESD-442, ESD-659, ESD-660T, ESD-662 (11/83) from:
^  cworthy.net
Ford ID#s, Engine Models, Vehicle Applications, Year Mfr’d, Bore, Stroke, Cyl, 65~93, from:
^  uktractorpulling.co.uk
Engine Pictures, Drawings, Specs, Operator Manuals, etc. are at:
^  BoatDiesel.com


Forum Posts

Forum Post describing Ford-UK 6 cylinder diesel engine development from:
^  uktractorpulling.co.uk
Forum Post describing Ford-UK 6 cylinder truck diesel engine development from:
^  FordsonTractorPages
Forum Post describing Ford-UK diesel engine development from:
^  dieselenginetrader.com


Tech Tips

  • Five Easy Ways to Tell the Dover and Dorset Apart from www.FoleyEngines.com
  • Ford Industrial Letter=Year Codes from www.FoleyEngines.com:
    M=0, G=1, B=2, L=3, A=4, C=5, K=6, H=7, T=8, R=9 (eg RR=99)

Tech Notes

CAV bought out SIMMS in 1968
+


Related Articles

+

See Ford Power Products for Ford gasoline, natural gas, LPG and dual fuel engines

Lehman Ford Routine Maintenance Guide from Bomac

What a Ford-Lehman engine rebuild consists of from Bomac

Reciprocating Piston Engine Configurations: 2 & 4 Stroke Cycle. In-line and V, + 20 Others
+
See DIY: Engines for articles on Engine Refitting, Repowering, Selection, Installation, Maintenance, Troubleshooting, and Repair


Related Books

+


Related Magazines

+


Related Videos

+


Related Websites

+


Page still under development.
If you would like us to add a book, magazine, video, or website to this page,
just mention it in the Comment Box below.


Contact Information

Sabre Engines Ltd >OoB? >Perkins Marine Power 2009? >Caterpillar?
(Caterpillar’s) Perkins Sabre Marine Power (Note sign at Caterpiller UK in picture below)

Wimborne, Dorset, BH21 7PW, England
Phone: +44 (0)1202 893720
Fax: +44 (0)1202 851700
Website:
Contact Form:
Email:

Sabre Caterpillar UK_c_c
Caterpillar UK_cC
Caterpillar UK
Perkins Marine Power
Wimborne Marine Power Centre
22 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset, BH21 7PW, England
Phone: +44 (0)1202 796000
FAX: +44 (0)1202 796001
Website: www.perkins.com/Marine
Email: Marine@Perkins.com

More from BoatDiesel



Visit our FEATURED ARTICLES Home Page
to see examples of our website's comprehensive contents!

Thanks to our amazing contributors for the steady flow of articles, and to our dedicated all-volunteer staff who sort, polish and format them, everyday we get a little bit closer to our goal of
Everything About Boats. If you would like to submit an article,
see Submitting Articles.

— TOP 20 MOST POPULAR ARTICLES —

Ford Industrial Power Products Diesel Engines
Ford 2715E
Lehman Mfg. Co.
Detroit Diesel 8.2
Universal Atomic 4
Chrysler & Force Outboards
Eska
Perkins
ZF Friedrichshafen AG
Allison Transmission
American Marine Ltd (Grand Banks)
Boat Inspection
Types of Marine Surveys
Marine Surveyors by Regions
Boat Builders By MIC
Beta Marine
Waterwitch
DIY Boat Owner Magazine
ABYC
USCG NVIC 07-95 Guidance on Inspection, Repair and Maintenance of Wooden Hulls


What our nonprofit Anchors Aweigh Academy and its EverythingAboutBoats.org website have accomplished so far.

  • Published over 300 website main topic webpages, many with full articles on the topic. See our Website Contents in the Right Sidebar for the listing of the main topic pages.
  • Published over 9,000 marine vendor webpages, all with their contact information, most with a description of their products and services, many with product documentation, specifications and independent reviews. (Includes: Boat designers, boat building tools, material and equipment manufacturers and suppliers, boat builders and dealers, yacht brokers, marine surveyors, boat insurers, boat transporters, skippers and crews, boatyards and marinas, yacht clubs, boat rentals and yacht charters, boating, seamanship and maritime schools, marine law attorneys and expert witnesses, boat refitters and repairers, book authors and publishers, and video producers)
  • Acquired over 120,000 pages of product documentation including Catalogs, Brochures, SpecSheets, Pictures, Serial Number Guides, Installation Manuals, OpManuals, Parts Schematics, Parts Bulletins, Shop Manuals, Wiring Diagrams, Service Bulletins, and Recalls. And have made all viewable to academy members through the EAB website.
  • Acquired over 1,200 books and magazine back issues in our academy library and so far have made over 700 viewable to academy members through the EAB website.
  • Published over 500 DIY How-To articles about boat design, construction, inspection, operation, maintenance, troubleshooting and repair. We are working hard to do more.

We are currently formatting and polishing the Anchors Aweigh Academy online and hands-on courses. The Marine Surveying course has proven to be excellent for both the beginner and the seasoned surveyor, and especially helpful to the Do-It-Yourselfer.


Current Academy Members must SIGN IN to gain FULL access
to this website including the Members' Comments & Reviews!

If your membership has expired, CLICK HERE to Renew.

IF YOU ARE NOT YET AN ACADEMY MEMBER,
CLICK HERE to discover how you can become a Member and gain FULL access to
thousands of expanded pages and articles, and dozens of excellent programs
WITH JUST A SMALL DONATION!

Thank you for your support. You make this website possible.


Comments for Public Viewing

Anyone may submit comments for public viewing via email to:
Comments@EverythingAboutBoats.org
(Put this webpage's title in the subject line)

FROM Donald: "This is an awesome website. I found the information that I needed right away from one of the over 10,000 free articles that you provide as a public service. I'm surprised that so much if this site is free. But I still signed up so I could access the thousands of expanded pages, interesting articles, and dozens of valuable programs! The member's library of books, magazines and videos that I can view online is really terrific! I understand that you and your staff are all unpaid volunteers. Please keep up the good work. And I commend you for your plans to add another 10,000 free informative articles over the next year. I'm thrilled to support you in this endeavor with my small membership donation. Thanks again for all your hard work."

FROM Huey: "I agree with my Uncle, I too have found the articles to be very enlightening. They say that it will take about 50,000 articles to cover the full scope that they have envisioned for the website. They have over 10,000 articles so far and that's doing pretty well, but it could take several years to get the rest. I also noticed that many of the Main Topic Pages and some of the article pages are still in the rough draft stage. I guess that they will fill in as they can get volunteers to work on them. But what I can't figure out is why anyone would spend the time writing informative in depth articles just to give away free to this website for publication? What's in it for them?"

FROM Dewey: "Well Huey, to me It looks like most of the articles on this website are written by very informed people, like boating instructors, boat designers, boat builders, riggers, electricians, fitters, marine repair technicians and marine surveyors. Writing such articles helps establish them as knowledgeable professionals. After all, this website was originally created by a school for marine technicians and marine surveyors. The website is growing in content every day. They even had to move to a bigger, more powerful server on October 15, 2018 because the website's traffic has been growing exponentially."

FROM Louie: "I agree with everyone above. This site is quickly becoming the ultimate reference resource about every aspect of boats and ships for everyone from the beginning recreational boater to the seasoned professional mariner. I use the topic pages on the right sidebar to browse around the website. It's like a Junior Woodchucks' Guidebook for Boaters. Their Members' Library of over 300 popular and obscure books and over 200 magazine back issues that can be viewed online is fabulous. The Academy's magazine is especially informative. On top of that, there is the "Ask-An-Expert program for members where you can get an expert's answer to any of your boat questions. And a whole years membership is only $25. What a deal! I really love being part of this "Everything About Boats" community and help provide thousands of helpful articles free to the public. I think that I'll sit down right now and write an article about my experiences boating with my uncle."

FROM Scrooge: "You rave about this website like it was the best thing since sliced bread. Well, I think it stinks. Sure, it has a lot of good information for boaters, and they're adding more every day, but it will probably never be finished. Furthermore, I don't even own a boat. And I wouldn't have a boat even if someone gave me one. Boats are a waste of money and time and energy and money! They're just a hole in the water you pour money into. If you gave me a boat, I'd sell it quicker then you could say Baggywrinkle. Then I'd lock up the cash with all my other money so I could keep my eye on it and count it every day. Bah humbug."

FROM Daisy: "I'm just so glad that Donald got the boat so we and the boys could enjoy boating — together. And of course all of the girls, April, May, and June, love to be on the water too, especially when that is where the boys are. Oh poor Scrooge, boating is more fun then you could possibly imagine."

FROM Editor: "For those of you that have stayed with us this far, Thanks. You inspire us to keep working on this labor of love. We know that we have a lot more to do. Ultimately, we hope that we can help you enjoy the wonder filled world of boating as much as we do. We are all waiting to see what you have to say about this webpage article. And we assure you, your corrections, updates, additions and suggestions are welcomed. Let's work together on this.

FROM Name: Text.


Academy Members' Comments & Reviews
Academy Members must be signed in to post and view

This website welcomes our members Comments & Reviews, including any recommendations (favorable or not) based on their experience with the above marine vendor, boat equipment, article author, etc. Please see our COMMENT RULES as all Comments will be moderated before they appear on this page.
