Industrial Engine Operation ⇒ Ford Power Products

Ford Motor Company has long been an industry leader in supplying powertrain systems to the industrial and power generation markets. Originally established in 1947 as the Industrial Engine Operation of Ford Motor Company, and going by several names over the years, Ford Power Products is now managed by Ford Component Sales: a wholly owned subsidiary of the Ford Motor Company. In the past, Ford Power Products marketed a wide range of gasoline engines sourced from their automotive and industrial divisions, and diesel engines and spare parts sourced from their tractor and truck divisions and adapted to the off-road markets including OEMs and the marinizers: Lehman, Mermaid and Bomac, just to name a few. A more complete listing of marinizers follows later in this article. Ford Component Sales today offers select Ford Engines, Transmissions and Service Parts to non-automotive off-road markets through their network of engine up-fitters and resellers. Ford Component Sales’s current engine lineup includes a wide range of engines operable on gasoline, natural gas, liquefied petroleum gas and dual fuel. For these engine offerings, go to Ford Power Products.

From Ford Power Products.

Ford 2715E based Lehman 120

This article is most concerned with Ford tractor and truck sourced diesel engines used in marine service for propulsion and power generation. But first, a little background.

Ford Motor Company
Early History

Ford was a major manufacturer of farm tractors for much of the 20th Century beginning in 1917 with the first model being built in Dearborn, Michigan. It was based on the Ford model T automobile and shared many parts with the Ford model TT truck. Initially it was simply called “the Henry Ford tractor”. In early 1918, the name “Fordson” was trademarked, and within a few months it was being marked on the tractors. By mid-1918, more than 6,000 Fordson tractors, all U.S.-built, were in use in Britain, Canada, and the United States. After World War I ended, production began in Cork, Ireland, in parallel with U.S. production. However, Ford ended production at Cork in 1922 due to the Irish revolution and in 1923, shipped the factory’s equipment back to the U.S. In February 1928, Henry Ford shocked everyone by ending U.S. Fordson production. Shortly thereafter, Ford of England restarted Fordson production at Cork, but when the new Dagenham plant opened in 1933 and took over production, the Cork plant was again closed. Tractors from the new plant were sold throughout the UK and exported all over the world including the US. During World War II, these tractors helped to produce much needed foodstuffs while releasing manpower off  of the farms to join the war effort. After World war II, when diesel engines sourced from Perkins were offered in some models of the Ford tractors, and they proved quite popular. Ford decided to develop their own diesel engines for their own Fordson tractors.


Ford “Dagenham” (4D, 4D Mark II & 6D Mark II) Diesel Engines
(1952-1964)
and EBRO of Spain (4D Mark II) Diesel Engines
(1965-1999?)

Fordson
1952 Fordson Tractor with 4D Diesel Engine                         1952 Fordson Thames (ET6/7) Sussex 6×4 Flatbed.

In 1952Ford of Britain launched the “E1A Fordson Major” tractor (see picture above left) with a new Dagenham built overhead valve 4 cylinder 220 cubic inch diesel engine. This engine became known as the “4D” and featured “wet” cylinder liners. Shortly thereafter, the “4D” was made into a higher revving automotive version and fitted into the “Thames ET6/7 range of lorries up to 5 ton payload (see picture above right). There was also a jointly developed petrol version of this engine displacing roughly 200 cubic inches (shown in a cutaway view below left). It shared some of its basic parts such as the cylinder block and crankshaft with the diesel engine. Both engines proved to be very reliable, but somewhat under-powered.

Trader
Fordson 4 Cylinder Petrol Engine                                      1964 (Ford of Britain) Thames Trader lorry

When Ford’s competition offered lorries with 7 ton payload, Ford realized that it needed a new model of lorry to compete. This new lorry was launched in May 1957 and was known as the “Thames Trader” (see picture above right). This high cabbed monster was offered with the option of either an improved 4 cylinder “4D” (Mk2) or a new 6 cylinder “6D” (Mk2) engine depending on the vehical’s payload. The “6D” was basically a 6 cylinder version of the “4D” with the same bore and stroke, and therefore had a capacity of 330 cubic inches. It shared some of its parts with the “4D” such as pistons, rings, connecting rods and valve train components. There was also a petrol version of this engine displacing roughly 300 cubic inches. It shared some of its parts with the diesel engines including the block castings, crankshaft and connecting rods.

All 4D & 6D engines became known as “Dagenham” engines due to their plant of origin. They featured an “exposed” fuel injection pump drive and “wet” cylinder liners. One of the weaknesses of these engines compared to the later D-series and Cargo engines was that as they age, they tend to leak coolant into the oil sump. This is usually caused either by a leaky cylinder liner which has rusted through from the water jacket side, or corrosion of the cylinder block where the cylinder liner’s lower sealing ring should seal, or hardening of this liner seal due to normal aging or to excessive heat. It is important therefore to routinely flush the block around the bottom of the water jackets and use anti-freeze with corrosion inhibitors to prevent corrosion and consequent leakage. This isn’t a problem with the later 2700+ range engines since they use either “dry” cylinder liners or “parent bore” cylinder blocks.

During the production run of these engines, the 4D from 1952 to 1964 and the 6D from 1957 to 1965, numerous minor changes were made, although the engines retained their basic design and dimensions throughout, with many of the parts being interchangeable across the years. Some of the more significant of these minor changes are chronologically listed below:

  • In 1957, the launch of the Mk2 engine which amongst other changes had “high crown” pistons, and a thicker head gasket.
  • In 1961, The sealing of the “wet” cylinder liners with two O-rings. One at the top, one at the bottom. Previously only one O-ring had been used at the bottom.
  • In 1962, The use of a Simms Minimec mechanically governed fuel injection pump instead of the previous vacuum governed Simms injection pump.
  • In 1962, With the launch of the Mk2 Thames Trader, the 6D engine was fitted with the higher air flow “FL” cylinder head.
  • In 1963, The 4D got a high air flow “FL” head (See the following link for further details of the “FL” head: http://www.ytmag.com/fordson/messages/2506.html courtesy of Steven B).

There were effectively 3 flavors of the 4D engine: Agricultural / Automotive / Industrial. The agricultural version didn’t rev as quickly as the automotive version – approx 1800rpm instead of approx 2400rpm. The industrial version had slight differences like a decompresser for starting with a handle.

Unlike the 4D, the 6D only had 2 flavours: Automotive / Industrial. A limited number of 6D engines were used in Agriculture by companies like County and Roadless in their 6 cylinder 4 wheel drive version of the Fordson Major. A number were also used in combines, grass drying plants, rock crushers, etc, but these were basically Industrial engines being used for agriculture. Ford themselves never developed an agricultural version of this engine, and never built a 6 cylinder Fordson Major, although many were later converted to 6 cylinder engines.

The industrial engines were designated 589E, 590E, 591E, 592E for the 6 cylinder petrol, 6 cylinder diesel, 4 cylinder petrol, 4 cylinder diesel respectively. The Thames Trader 5 ton diesel (RHD) was denoted 510E, and the Thames Trader 5 ton petrol (RHD) was denoted 508E. The Fordson Major was designated the E1A. See the engine specifications tables later in this webpage article for more details.

With regards to 4D parts availability, these engines are fairly easy to get bits for. A significant number of Fordson Major tractors are still in use around the world, and a large number have also been preserved / restored. Consequently, a lot of aftermarket parts are being supplied for the Fordson Major. Also, EBRO in Spain continued producing the 4D under license to Ford up through the 1990s. See more about EBRO later in this article. Suffice it to say that EBRO is a good source for 4D parts and the 6D parts they have in common. It should be easy to get hold of Valves, Valve guides, Pistons, Liners, Small end bearings, big end shells, main bearing shells, crank seals, water pumps etc. since they are all used on the “4D”. Parts specifically for the 6D might not be quite so easy to find, although they shouldn’t pose too many problems.

So in general when looking for parts, try to find parts that start with either 508E (in the case of parts common with the 6 cyl. petrol eg. crankshaft), 510E (in the case of parts specific to the 6 cyl. diesel), or E1A (E1ADDN / E1ADKN) in the case of parts common with the 4 cylinder. Avoid parts that begin with a 2700E number (eg. 2703E / 2704E etc.), since these refer to the later D-series / Cargo lorry type engine.

After Ford ceased production of the 4D in Britain in 1964, Ford sent the tooling to EBRO in Spain where production resumed under license into the late 1990s. Most of the parts for these engines are interchangeable with the earlier Ford 4D and to a lesser extent, the 6D. Lehman marinized these EBRO built engines into the 1990s as the Lehman model 4D220.

The European Fordson brand and US Ford brand were consolidated in 1964 with the creation of a global tractor line. The Fordson Major was produced until 1964, whilst the Thames Trader and Industrial engines were produced until 1965. The Dorset 2700 series engines soon followed.

The easiest way to identify the “4D” & “6D” engines from the later Ford engines is the external drive shaft to the injection pump as shown below. The shaft coupling incorporated a timing adjustment claw bolt as shown below. The marinized version sometimes utilized the tachometer drive on the aft (left) end of the fuel injection pump to drive the raw water pump.

On the 4D engine, either a nylon or a rubber coupling will be found as an injection pump drive shaft coupling. The injection pump drive exits the block from the timing gears, through the aforementioned coupling to the injection pump. On the 6D engine, a drive shaft of approx 6 inches in length is used to connect the pump to the timing gears. On both the 4D & 6D engines, the drive will be seen rotating whilst the engine is running (see pictures below).

Note the exposed couplings & shafts driving the fuel injection pumps below.

1963 Fordson Major 1955 Fordson Major
1963 Fordson Tractor with 4D Diesel Engine                     1955 Fordson Tractor repowered with 6D Diesel Engine.

Early Ford 6D with Lehman Marinization, Velvet Drive Gear and Walters V-Drive. Note the non-stock chrome.

A feature evident on many marinized 4D and 6D engines is the location of the raw water pump at the aft end of the “Jerk” type fuel injection pump where it was often driven by the aft end of the fuel injection pump camshaft (as shown in the picture above) where the tachometer drive was intended to go. But then there were some engines that had belt driven raw water pumps which were located at the front of the engine.


Ford “Dorset” (2700 & 2710 Range) Diesel Engines
(1965-1982)

The fuel injection pumps on 2700+ engines (1965+) were gear driven directly
without any exposed couplings or extension shafts (see picture below).

Lehman 4cylLehman marinized FORD 2701E Dorset with directly driven fuel injection pump (no external drive shaft).
The directly driven fuel injection pump caused more rapid wear of the engine’s pump driving gears.
Also note the remote oil filter, which had been inverted to fit into the shipping crate is now righted.
The “Two Shaft” Raw Water Pump has yet to be replaced with “Single Shaft” Pump to avoid shaft failure.
See other “Fixes” that need to be accomplished to prevent engine damage listed later in this article.

In 1965, Ford introduced the Early Dorset Series 2700 Range diesel engines which were produced from 2/1965 to 11/1969. This range included the 2701E, 2703E, 2704E, 2704ET (Turbocharged), 2706E (an inclined 2701E), 2708E (an inclined 2703E), and 2709E (an inclined 2704E). All featured “Dry” cylinder liners, a new block, cylinder head, sump, etc. and were distinct from the Dagenham series engines by having the fuel injection pump mounted directly to the timing gear housing and driven directly by the engine’s timing gears (as shown in the picture above) with no moving parts seen whilst the engine is running. But like the 4D & 6D, they still had the pressed steel timing gear covers and angle cut timing gears. The Lehman marinized versions of these engines were fitted with the troublesome two-shaft raw water pump which was developed by Lehman from a Jabsco rubber impeller type water pump and located just under the fuel injection pump. Both the directly driven fuel injection pump and the raw water pump contributed to rapid wear of the engine timing gears. When these gears failed, the engine would suffer significant internal damage. The earlier 4D and 6D engines did not suffer from as much gear wear because the soft shock absorbing fuel injection pump drive coupling had the beneficial effect of minimizing drive gear chatter, and thus engine timing gear wear was not the problem that it became on the Dorset Series engines.


1967 Ford D-Series Lorry

In April 1965 Ford launched the “D-Series” lorry (see picture above) to replace the Thames Trader. These vehicles were fitted with automotive versions of the 2700 series engines which were fitted into the lorries on a slant (inclined). The first of these engines were offered in 330 & 360 cubic inch configurations. A Turbo 360 was offered in 1968.

In 1969, Ford introduced the Early-to-Late Transitional Dorset Series 2700 Range “C” suffix (Parent Bore) Engines which were produced for only one year from 11/1969 to 10/1970). This range included the 2701C, 2703C, and 2704C, which were the immediate forerunners of the 2711E, 2713E, and 2714E respectively which they were nearly identical to.

In late 1970, Ford introduced the Late Dorset Series 2710 Range engines which were produced from 11/1970 to 1982. This range included the 2711E, 2712E, 2713E, 2714E, and 2715E, all of which featured boreable “Parent Bore” cylinders. The 2704ET Turbocharged “Dry” Liner engine was carried over from before. This engine series was fitted into the D series lorries on a slant (inclined). The 2712E was marinized into the popular Lehman 80, and the 2715E was marinized into the even more popular Lehman 120.

In 1977, Ford licensed Ford-Otosan in Turkey to start producing Ford engines.

In several of the current online forums, there seems to be some confusion about which engine family came first, the Dagenham engines, the Dorset engines or the Dover engines. The Dagenham and Dorset sections above and the Dover section below should help clarify this issue. Several documents identify the engine families including the Mermaid specsheets. One significant source of this confusion is due to the commonality between all these engine families. This has resulted in it becoming common practice to replace damaged engines with older or newer engines, or with engines made up of components from earlier or later engines, sometimes from different applications (agriculture, automotive or industrial), and different duty ratings and power ratings. One must be very careful when identifying engines and their proper components to avoid throwing the engines off balance especially in twin engine applications. It is often wise to consult a knowledgeable expert such as one of the Smiths at American Diesel to ensure that you achieve the best results.


Ford “Dover” (2720 & ESD Range) Diesel Engines
(1982-1991)
And Ford-Otosan “Dovertech” (2720 & ESD Range) Engines
(1986?-2010)

In 1982, Ford introduced the Dover Series 2720 (ESD) Range engines which were produced by Ford at Dagenham from 1982 to 1994. This range included the 2721, 2722 (Lehman Super 90), 2723, 2724, and 2725 (Lehman Super 135) which featured “Parent Bore” cylinders and the 2726T and 2728T (both Turbocharged) which featured “Dry” liner cylinders. The 2720 series can be identified by the cast aluminum timing gear covers, the straight-cut timing gears and the highly visible chrome valve covers (see picture below). Note that some earlier engines were also fitted with chrome valve covers, so don’t depend on this feature alone to identify Dover engines. see the picture of the old blue 6D above with a non-stock chrome valve cover. The new straight-cut timing gears were noisier, but more robust and reduced the rate of gear tooth wear.

Ford-Lehman Super 135 (Dover 2725). Note chrome valve cover, direct driven fuel injection pump and aluminum timing gear cover.

In 1983, the Ford Cargo (pictured below) replaced the D-series (pictured second above). The Cargo lorries were fitted with automotive versions of the new Dover 2720 series engines which were fitted into the lorries on a slant. The majority of marinized Ford diesel engines that you will see nowadays are based on either the D-Series’ Dorset engines or the later Cargo’s Dover engines.



1986 Ford (Iveco) Cargo Lorry

In 1986, Ford-Otosan in Turkey began producing “Industrial Engines” for Ford. Shortly thereafter, all Ford Dover truck and industrial engine production moved to Turkey.

From 1986Iveco S.p.A. held a 52% stake in Iveco Ford Truck Ltd, a joint venture (and effectively a merger) with Ford of Europe’s truck division. Ford plants took over production and sales of the major vehicles in the Iveco range and continued production of the Ford Cargo with at least some of the engines sourced from Ford-Otosan.

After 2000, Ford-Otosan continued production of the 2725E (sometimes referred to as the 2725OTO) until 2008, and the 2726T, 2728T and 2726TIM until 2010. Many of these engines were available from Ford stockpiles years past the end of their final production runs. In most markets, emissions regulations began restricting installation of these engines to existing engine replacement only. This kept them from being installed in new applications and of course ultimately led in their demise. Today, most all of the stocks of new engines and major castings such as blocks and heads have been exhausted, but most typical parts for rebuilding these models are still readily available.

More from Diesel Engine trader Forum Post by Arthur Ford

Ford New Holland “M” + “Brazilian” (BSD Series) Diesel Engines

The BSD Series was a large family of 112 mm (4.4″) bore engines developed in the 1960’s by New Holland Machine Company and used in New Holland products, mainly their tractors and combines. The engines were designated the M series and produced with 3, 4, and 6 cylinders and with various strokes from over-square, to square, to under-square. This allowed the use of the same 3, 4 and 6 cylinder blocks with various crankshafts to produce a wide range of power and torque values with many of the parts being interchangeable. The engines were of the “Parent Bore” type where the pistons are initially fitted directly into the cast-in-block cylinder bores. The Parent bore cylinders could, if needed due to cylinder wear or scoring, be bored and honed to fit oversized pistons and rings, typically 0.020″, 0.030″, and 0.040″ over, Or if needed, the Parent bore cylinders could be bored even more to fit cylinder repair sleeves, typically 4.506″, 4.590″, and 4.653″ Outside Diameter (OD). The thicker repair sleeves could also be bored and honed to fit the oversized pistons if need be. The exhaust manifold was located on the opposite side of the engine to the intake manifold. This is typical of a cross-flow head. This family of engines were favorably received and have broadly earned praise for their durability and dependability. They were initially marketed by New Holland to other OEMs, and later marketed through a joint venture with Ford by Ford Power Products for industrial and marine service as the BSD series.

Ford expanded its tractor business when it purchased the Sperry-New Holland skid-steer loader and hay baler, hay tools and implement company from Sperry Corporation in 1985 and formed Ford-New Holland with the tractor plant located northeast of Dagenham in Basildon (see Fordson in Wikipedia).

After Ford acquired New Holland in 1985, Ford offered turbocharged versions of the 6.6L and the 7.8L engine in their Medium Duty F-600, F-800 and F-900 trucks, and in the Ford B series cowled bus chassis (an F series derivative). While the engines were officially the Ford-New Holland 6.6L and Ford-New Holland 7.8L, they are popularly known as the Ford “Brazilian” diesels as they were actually produced by New Holland of Brazil, and acquired through a joint-venture between New Holland of Brazil and Ford. The engines were well received for their durability and dependability, albeit somewhat underpowered. Ford stopped offering these engines in their trucks and buses at the end of the 1994 model year in favor of more advanced engine designs such as Cummins. From DieselHub.com.

In 1991, Ford exited the tractor manufacturing business altogether when it sold New Holland to Fiat. Fiat began phasing out the Ford engines and phasing in their own engines as they also began phasing out the Ford name which they completed by the year 2000. However, Ford was able to continue sourcing the BSD series vehicle and industrial engines from New Holland until 1994+? and New Holland of Brazil until 1994+?


Ford Case New Holland “Genesis” Diesel Engines
(1991? to 2003?)

The Ford-Case-New Holland “Genesis” Series diesel engines were a North American tractor engine. From ¿1991±? to ¿2003±? they were sourced by Ford Power Products from Case New Holland and available in 4 cylinder 5.0L and 6 cylinder 7.5L configurations. They gained a wide acceptance as reliable engines. They  were marinized by Mermaid Marine and offered in several versions up to 400 horsepower.


Ford “Kent” Petrol Engine Dieselized by Watermota
(1975?-1978?)

Through the 60’s and 70’s, Watermota had been marinising the Ford Kent petrol engine series (used in the Ford Anglia, Cortina, Escort, Pinto, etc.) and had been successfully marketing them for marine service as the Watermota Sea Wolf, Sea Otter, and Sea Tiger depending on displacement. By the mid 70’s, Watermota had developed the cylinder head, pistons, fuel injectors, diesel injection pump, pump drive, etc. to convert the Kent 1.6L (1600cc) petrol engine with the A711M block to burn diesel fuel. Watermota marketed this engine as the Sea Panther Mk 2. Westerbeke sourced this diesel burning engine from Watermota and marketed it as the Westerbeke L-25. Watermota also marinized the Ford 2715E?/2725E? base engines and marketed them as the Sea Ranger?/Lion? 120?/125?.


Ford-PSA “Peugeot XD” Diesel Engine by Indenor (XDP)
(1972-1988)

The Ford-PSA-Peugeot XD series of diesel engines was sourced by Ford from Indenor through PSA PowerTrain (Formerly Peugeot Citroën Moteurs). PSA had marketed the XDs very successfully to power several brands of generators, tractors, light trucks and automobiles including their own very popular Peugeot 504 series of vehicles. In turn, Ford not only used these engines in their own vehicles such as the European Ford Granada, but Ford also supplied these engines to its subsidiaries, including Jaguar, Volvo, and Land Rover. Ford also supplied these engines through Ford Power Products to be marinized by DNT, Lehman, Stratos, Vetus and Volvo Penta.

PIX

The XDs came in several 4 cylinder inline Displacements including 1.9L, 2.1L & 2.5L. The 1.9L had a bore of 88mm and was designated the XD88. The 2.1L (2112cc) had a bore of 90mm and was designated the XD90. Indenor, who designed this series used slightly different model designations in their production, the XDP 4/88 & XDP 4/90 respectively. The 2.5L engine retained the same stroke as the XD90 but gained a larger bore of 93mm. The XD engines were also produced in six-cylinder inline versions like the XDP 6/90 which was used as the base for the Volvo Penta MD31. All these engines came in several versions depending on their application (Agriculture, Industrial, Automotive & constant-speed Power generation) each with its own rating.

In 1998, PSA entered into a joint venture with the Ford Motor Company to produce a range of new diesel engines. The joint venture makes identical engines which are fitted to a variety of vehicles from a range of car manufacturers. The engines are assembled in production plants in the cities of Trémery and Douvrin for PSA in France, at the Ford Dagenham plant in the UK, and Volvo Engine Plant in Skövde Sweden when Volvo was still under Ford ownership. PSA-Indenor diesel engines have also been assembled by Mahindra in India. Mahindra is one of the largest vehicle manufacturers by production in India and the largest manufacturer of tractors in the world.


Ford “York” Series Diesel Engines
2400 Range (1972-1984) & FSD Range (1984-1999)

(Ford Transit)

The Ford York engine is an inline Ford diesel engine originally used in vehicles including London Taxis and the Ford Transit range of vans between 1972 and 1984. The Transit was fitted with the 2.4-litre four-cylinder engine, but the engine was also available as a 3.5-litre six-cylinder engine. These were fitted in the Ford “A” series light commercial vehicles. Both the four-cylinder and the six-cylinder engines were also available as 2400 Series industrial engines and were marinized by Fenwick and Lees. They were indirect injection until 1984 when they were redesigned. The new York 2.5-litre DI (direct-injection) engine was a milestone in reliability, with engines commonly reaching 250,000 miles without overhaul. The industrial (FSD 425) version was marinized by Mermaid and Lancing Marine for marine service even after Ford ceased production of the model in 1999 until engine stocks were exhausted. Rebuilt FSD 2.5L engines are still being marinized by Lancing Marine.


Ford “DuraTorq” Series (1999-?) XLD, ZSD Ranges Diesel Engines
(PSA, Puma, TDCi) (Ford Transit)

Through the years, Dagenham has been the primary plant producing most of the Ford of Britain’s diesel engines such as the 4D, 6D and 2700+ series. Most recently the PT-22, PT-24 and PT-32 were produced there. These engines were the marine versions developed from the Ford “Transit” lorry’s Puma DuraTorq ZSD-422 (2005-), ZSD-424 (2007-) and DuraTorq TDCi 3.2 respectively. These engines were designed and put into production by a joint-venture between Ford and PSA Groupe that includes Peugeot, Citroën & Indenor. Unfortunately, these much lighter high-speed engines are not likely to achieve the avid following of their much heavier and more durable predecessors.


Trivia

The Ford 4D engines were built in the Ford of Britain’s engine plant in Dagenham, a suburb east of London, thus inaugurating the Dagenham series of engines in 1952.

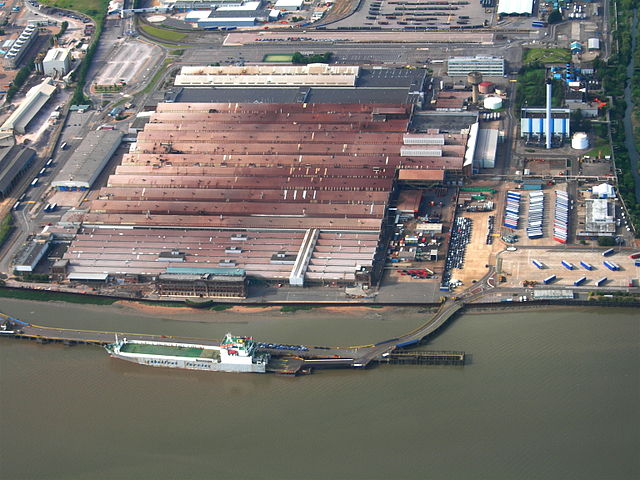

Ford’s Engine Plant on the River Thames in Dagenham, UK (just east of London)

Ford’s Engine Plant on the River Thames in Dagenham, UK (just east of London)

The Ford “4D” & “6D”, which are commonly called the Dagenham series engines, and their later offspring, the Dorset (2700+ & 2710+), named for an area that could be seen across the Thames River from the Dagenham plant, and the Dover series (2720+) all became very popular in Europe as well as globally in automotive, agricultural, industrial (eg. power) and marine applications. This latter use is surprising in light of the fact that Ford themselves did not produce a marine rated version of their engines until the Dover Series. Still, many Ford of Britain engines and a number of Ford licensed Spanish (EBRO) and Turkish (Ford-Otosan) versions of these engines were marinized by third-party companies or by private parties, and installed in various vessels, especially Asian Trawlers. While most of these engines were factory new when marinized, a few were “used” engines taken out of trucks, tractors, harvesters, rock crushers, etc. and may have accumulated many hours of hard use before they were marinized and fitted into vessels. If you have ever wondered why some marinized Ford diesel engines seemed to last far fewer hours then others, this could be the reason. Sometimes an engine survey by a professional is a good idea, if for no other reason then to determine the actual condition of an engine. The hours on a meter may not tell the true age.

The Ford Power Product engines came in various colors depending on the agreement in place with the source at the time. Some came with Ford Blue, some Gray, some black, some Clear, some Primed, some oiled, some with a waxy preservative on bare metal. and some with nothing at all. Some were painted or repainted by Ford Power Product before being shipped to their buyer. These engines could be any color. Sometimes the buyer would specify. Ford Power Products favored Blue. Most were repainted by the Marinizer. Lehman Red, Mermaid White or Blue, American Marine Greenish Gold or Yellowish Gold for example. Have you noticed that most repaints done in the vessel are poorly prepped and don’t last long before the paint starts flaking off? See “How to properly paint an engine”. (Coming soon)

In the late 1990s, EBRO finally ceased production of the venerable old 4D diesel engine. And in 2010, Ford-Otosan produced the last of the Ford Dover Series derived engines, thus ending Ford’s long dominance of the genre.

On 1 January 2011, Fiat Industrial was formed, incorporating CNH (Case New Holland), Iveco and FPT Industrial, effectively bringing back together what Fordson Tractor and Fordson Trucks had become. Recall that these were the original sources of the Ford diesel engines that became so popular especially in Asian Trawlers in the latter half of the 20th Century.


Ford Industrial Power Products
Contact Information

Ford Industrial Power Products
?
?Dagenham, England?
?Essex, England
?

See Ford Power Products for Current Ford Contact Information.
Current Official Website for New Holland.

Primary Marinizers of Ford Industrial Power Diesel Engines

Lehman 120

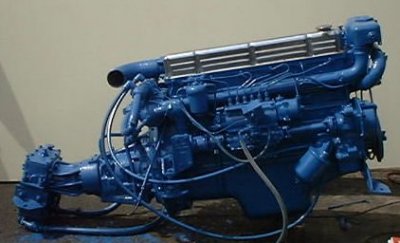

The very popular 6.22L Lehman 6D380 120 hp (Ford 2715E)

Ford & Lehman “Fixes” that need to be accomplished before your engine suffers damage:
(Click links below to go to special in-depth “Members Only” articles on each “Fix” + more)

  1. Fix engine misfire before injection pump governor and internal engine damage results.
  2. Fix fuel injection pump lubricant before injection pump & governor damage results.
  3. Fix engine oil filter hoses and attachment before internal engine damage results.
  4. Fix engine oil cooler before cooler fails and engine damage results.
  5. Fix engine drive gears before gears fail and serious internal engine damage results.
  6. Fix “Two Shaft” raw water pump before shaft fails and engine overheat damage results.
  7. Fix Exhaust Elbow before engine overheating or hydrolocking results.
  8. Flush water jacket around rear-most cylinder and fit rear coolant fitting.
  9. Test and maintain engine coolant to prevent corrosion at wet liner cylinder seals.
  10. Fix coolant cap and flange, and fit coolant return tank to prevent scored piston.
  11. Fix coolant hoses before they fail and engine overheat damage results.
  12. Fix cause of premature engine drive belt failure before belt fails.
  13. Properly store spare drive belts in order to get home without a second failure.
  14. Fix substandard engine wiring before faults cause serious failures.
  15. Fix transmission fluid cooler before cooler fails and transmission damage results.
  16. Fix Velvet-Drive CR2 pinion nut before nut loosens and destroys transmission.

Notes: Many parts for these “Fixes” are available from American Diesel Corp‘s Website.


Engine Rebuilders and Repair Shops that are committed to supporting the Ford marine diesel engines

Bepco (Parts) (South Africa)
Bomac (100 miles north of Atlanta, Georgia in Blairsville, Ga, USA)
Harbor Marine (Everett, WA, USA)
Lancing Marine (Portslade, Sussex, UK)
• Logan Diesel (14 miles north of Jackson, Michigan in Leslie, MI, USA)

If you know of a business that should be added to this list, email the info to:
Editor@EverythingAboutBoats.org


Specifications for Ford 4-Stroke Cycle
Agricultural, Automotive, & Industrial Diesel Engines
And Popular Marinized Versions of These Engines

TABLE KEY:
= Data Not Available from Data Source. ? = …? = ¿…? = Data Unconfirmed.
BASE ENGINE: Manufacturer & Model of Base Engine.
CYL: Cylinder Orientation & Configuration – (Dash w/no spaces) Number of Cylinders:
^ Cylinder Orientation: u… = Upright (Vertical). s… = Slanted (Inclined).
^ Cylinder Configuration: …I = In-Line.
BORE & STROKE: …mm = Millimeters. …in = …” = Inches.
DISPLACEMENT (Swept Vol): …cc = Cubic Centimeters (cm³). …L = Liters/Litres. …ci = Cubic Inches (in³).

BRAND: ⇑ = Base Engine Manufacturer. ⇒ = Engine Marinizer/Mariniser/Component Supplier.
MODEL: Full Engine Model Number w/Codes.
^ Agr: = Agriculture (Tractors+). Aut: = Automotive (Trucks+). Ind: = Industrial. Mar: = Marine.
^ Fs- = Fordson. P = Power. S = Super. M = Major. Th- = Thames. Leh- = Lehman.
^ EC = Engine Code. Cylinder Block Capacity ID Code. TC = Turbocharged.
^ RATING: See the Engine Duty Ratings at the end of the Table.
ASP: Aspiration-Fueling: N = Naturally Aspirated. T = Turbocharged.  …i = Intercooled. …a = Aftercooled.
^ Diesel: M = Mechanical Injection. C = Common Rail. E = …e = Electronic Injection.
POWER: kW = Kilowatts. HP = Horsepower. BHP = Brake Horsepower. MHP = Metric Horsepower.
@RPM = Power Ratings @ Revolutions Per Minute.
YEARS MFR’d: Beginning-Ending. Trailing “–” (Dash) without an Ending Date = Still in Production.

Click on Model Links below for individual Model Pages that contain more detailed information and specifications, plus “DS” (Data Source) Links to Catalogs, Brochures, SpecSheets, Manuals, Parts Lists, Articles, etc.


Ford “Dagenham” Series (1952-1965) 4D, 4D Mark 2 & 6D Mark 2 Range and Spanish EBRO (1965-1999?) 4D Mark 2 Range
Features: Horizontal Crankshaft, “Wet” Cylinder Liners, Exposed Injection Pump Drive, Painted Valve Cover, Pressed Steel Timing Gear Cover and Angle Cut Timing Gears.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 4D uI-4 100mm 115mm 3.94in 4.52in 3.6L / 220ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford E1A (Agr: Fs-NM) N-M 29.6 40 1600 1952-1956
Ford 530E? (Aut: T-ET6/7) N-M 54-57 2400 1952-1956
Ford 562E (Ind) N-M 54-57 2400 1952-1956
Ford 954E (Ind) N-M 54-57 2400 1952-1956
⇒Lehman 4D220* N-M 1952?-1956?

NOTES: Engine was originally developed to fit Fordson New Major tractors and Thames ET6/7 lorries.
*Lehman did not develop the marinizing components for this Ford built base engine when it was in production, hence they did not marinize any 4D’s when they were brand new. Much later, Lehman developed the marinizing components for the later EBRO built 4D Mark II’s and 2700+ models that could retrofit to this engine. Consequently, any marinized Ford Dagenham built 4D’s or 4D mark II’s you find are probably used engines taken out of tractors, lorries, generators, etc. when they were eventually fitted with Lehman marinizing components. All new Lehman 4D220’s were EBRO built 4D Mark II’s (see EBRO 4D Mark II below).


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 4D Mark II* uI-4 100mm 115mm 3.94in 4.52in 3.6L / 220ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford E1A? (Agr: Fs Maj) ⊗-⊗ 29.6 40-54 1800 1957-1964
Ford 530E (Aut: Th-Trader) N-M 1957-1965
Ford 592E (Ind) N-M 40?-57 1957-1965
EBRO E1A?* (Agr: EBRO ?) ⊗-⊗ 29.6 40-54 1800 1965-1999?
⇑ EBRO 592E?* (Ind) N-M 40?-57 1965-1999?
⇒Lehman 4D220* N-M 1957?-1964?
⇒Lehman 4D220* N-M 1965?-1999?
⇒Parsons Pike N-M 36 1600 1957?-1965?
⇒Parsons Porbeagle N-M 52 2250 1957?-1965?

NOTES: Fitted to Fordson Power Major tractors (1958-1961), Fordson Super Major tractors (1960-1964) and Thames Trader lorries (under 5 tons).
*When production of the Ford 4D Mark 2 ceased at Dagenham in 1964, Ford sent the tooling to EBRO in Spain where production resumed and continued under license thru the 1990’s. Also see “NOTES” for 4D above.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 6D (Mk2) uI-6 100mm 115mm 3.94in 4.52in 5.4L / 330ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 510E (Trader) ⊗-⊗ 100 2500 1962-1965
Ford 590E (Industrial) N-M 100 2400 1957-1961
⇒Lehman 6D330 N-M 2400? 1952?-1965
⇒Parsons Marlin N-M 65 1800 1957-1965?
⇒Parsons Barracuda N-M 86 2250? 1957-1965?
⇒Parsons Barracuda Turbo T-M 108 2250? 1957-1965?

NOTES: Fitted to Thames Trader lorries. Never fitted to Ford tractors by Ford, but were often fitted to Ford tractors after-market by others.


Ford Early “Dorset” Series (2/1965-11/1969) 2700E Range
Including 2704ET (7/1968~1981?)

Features: Horizontal Crankshaft, “Dry” Liner Cylinders, Directly Driven Injection Pump, Painted Valve Cover, Pressed Steel Timing Gear Cover and Angle Cut Timing Gears.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2701E uI-4 105mm 115mm 4.125in 4.524in 3.964L / 241ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2701E N-M 53? 71 2500 1965-1969
Lehman 4D242 N-M 1965-1969
⇒Parsons Pike II N-M ? 65 ? 2500 1957?-1965?
⇒Parsons Porbeagle II N-M 65 2500 1957?-1965?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2702E uI-6 ⊗mm ⊗mm ⊗in ⊗in ⊗L / 330ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2702E N-M 1965-1969

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2703E uI-6 100mm 115mm 3.937in 4.524in 5.146L / 330.5ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2703E N-M 99.5 2500 1965-1969

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2704E uI-6 105mm 114.7mm 4.125in 4.516in 5.899L / 360ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2704E N-M 108.5 2500 1965-1969
Lehman 6D363? N-M 98?c 2500 1965-1969

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2704ET uI-6 105mm 115mm 4.125in 4.524in 5.945L / 360ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2704-ET (Ind&Mar) T-M 150 2400 1968-1981?
Lehman 6D363T T-M ? 150 152 2400 1968-1981?
Mermaid Mistral T-M 110 148 150 2400 1968-1982?
Mermaid 595 Ti-M 135-214 2450 1982-1991
Mermaid Majestic Ti-M 180 182 2500 1968-1974?
⇒Mermaid Turbo-Plus Ti-M 275 2500 1982-1991
⇒Parsons Force 12 T-M 158 2450 1968?-1981?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2706E sI-4 105mm 114.7mm 4.125in 4.516in 3.933L / 240ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford 2706E N-M 71 2500 1965-1969

NOTES: This is the inclined (slanted) version of the 2701E and was mostly fitted into vehicles.

Inclined (Slanted) Version of Ford 2701E


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2708E sI-6 100mm 114.7mm 3.937in 4.516in 5.408L / 330ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford 2708E N-M 99.5 2500 1965-1969

NOTES: This is the inclined (slanted) version of the 2703E and was mostly fitted into vehicles.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2709E sI-6 105mm 114.7mm 4.125in 4.516in 5.899L / 360ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford 2709E N-M 108.5 2500 1965-1969

NOTES: This is the inclined (slanted) version of the 2704E and was mostly fitted into vehicles.


Ford Early to Late “Dorset” Series (11/1969-10/1970) 2700 Range
Transitional “C” Suffix “Parent Bore” Engines

Features: Horizontal Crankshaft, “Parent Bore” Cylinders, Directly Driven Injection Pump, Painted Valve Cover, Pressed Steel Timing Gear Cover and Angle Cut Timing Gears.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2701C uI-4 107?mm 115?mm 4.22?in 4.52?in 4.15L / 254ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2701C N-M 71? 2500 1969-1970
Lehman 4D254? N-M 71? 2500 1965?-1969

NOTES: The earlier 2701E is not to be confused with the slightly larger displacement parent bore 2701C which was the immediate forerunner of the 2711E.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2703C uI-6 107mm 115mm 4.22in 4.524in 5.95L / 363ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2703C N-M 100? 2500 1969-1970

NOTES: The earlier 2703E is not to be confused with the slightly larger displacement parent bore 2703C which was the immediate forerunner of the 2713E.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2704C uI-6 107mm 115mm 4.22in 4.524in 6.22L / 380ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2704C N-M 108.5? 2500 1969-1970

NOTES: The earlier 2704E is not to be confused with the slightly larger displacement parent bore 2704C which was the immediate forerunner of the 2714E.


Ford Late “Dorset” Series (1970-1982) 2710 Range
Features: Horizontal Crankshaft, “Parent Bore” Cylinders, Directly Driven Injection Pump, Painted Valve Cover, Pressed Steel Timing Gear Cover and Angle Cut Timing Gears.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2711E uI-4 107mm 115mm 4.22in 4.52in 4.150L / 254ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2711E N-M 53? 71 2500 1970-1981
⇒Ammarine 254? N-M 71 2500 1969-1981
⇒Sabb F4.254 N-M 65 2500? 1969?-1981?

NOTES: While this engine is similar to the popular 4 cylinder Lehman 80, it is actually the “Econo” reduced horsepower version of the Ford 2712E (Lehman 80) listed below, and it was marinized in-house by American Marine Ltd with Lehman marinizing kits in the ’70s for use in their Grand Banks trawlers. The 2701C was the immediate forerunner of the 2711E.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2712E uI-4 107mm 115mm 4.22in 4.52in 4.150L / 254ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2712E N-M 66-80 2500 1970-1981
Lehman 80 4D254 N-M 72 80 2500 1969-1981
⇒Parsons Pike N-M 72 2500 1969?-1981?
⇒Parsons Porbeagle N-M 72 2500 1969?-1981?
Mermaid 397 N-M 72-80 2500 1982-1984
Mermaid Melody N-M 80 2500 1982?-1984?
Mermaid Flat-Four N-M 80 2500 1982-1984

NOTES: This is the popular engine marinized by Lehman and known as the Lehman 80.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2713E uI-6 105mm 115mm 4.12in 4.52in 5.950L / 363ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2713E N-M 100 2500 1970-1981

NOTES: The 2703C was the immediate forerunner of the 2713E.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2714E uI-6 107mm 115mm 4.22in 4.52in 6.220L / 380ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2714E N-M 108.5 2500 1970-1981
⇒Ammarine 380? N-M 108.5 2500 1969-1981
⇒Sabb F6.380 N-M 100 2500? 1969?-1981?

NOTES: While this engine is similar to the popular 6 cylinder Lehman 120, it is actually the “Econo” reduced horsepower version of the Ford 2715E (Lehman 120) listed below, and it was marinized in-house by American Marine Ltd with Lehman marinizing kits in the ’70s for use in their Grand Banks trawlers. The 2704C was the immediate forerunner of the 2714E.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2715E uI-6 107mm 115mm 4.22in 4.52in 6.220L / 380ci
FORD 2715E* sI-6 107mm 115mm 4.22in 4.52in 6.220L / 380ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2715E N-M 120 2500 1970-1981
Lees 2715E? N-M 120? 2500? 1970?-1981?
Lehman 120 6D380 N-M 120 2500 1969-1981
⇒Parsons Barracuda II N-M 108 2500 1969?-1981?
Mermaid Mariner N-M 120 2500 1969-1982
Mermaid Flat-Six* N-M 120 2500 1969-1982
⇒Watermota Sea Lion? N-M 120? 2500? 1969?-1982?
⇒Watermota Sea Ranger? N-M 120? 2500? 1969?-1982?

NOTES: This is the popular engine marinized by Lehman and known as the Lehman 120.
*This is the “slanted” or “inclined” version.


Ford “Dover” Series (1982-1991+) 2720 (ESD) Range & Turkish
Ford-Otosan “Dovertech” Series (1986?-2010) 2720 (ESD) Range

Features: Horizontal Crankshaft, “Parent Bore” Cylinders, Directly Driven Injection Pump, Chrome Valve Cover, Aluminum Timing Gear Cover and Straight Cut Timing Gears.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2721E uI-4 107mm 115mm 4.22in 4.52in 4150cc / 254ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford 2721 N-M 58.5 2600 1982-1991

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2722 uI-4 107mm 115mm 4.22in 4.52in 4.150L / 254ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2722 N-M 58.5 2600 1982-1991
⇑Ford ESD-442 N-M 1982-1991
Beta BD4 (UK) N-M 63 84 86 2600 199?-?
⇒Lehman Standard SD80 N-M 80 2500 1982-1991
Lehman Super SP90 N-M 90 2600 1982-1991
Mermaid Melody N-M 90 2600 1988-1994
Mermaid Turbo-Four Ti-M 200 2600 1982-1984
⇒Sabre 80C N-M 59 80 2600 1982?-1991?
⇒Sabre 90L N-M 66 90 2600 1982?-1991?
⇒Sabre 160C Ti-M 118 160 2400 1982?-1991?
⇒Sabre 190L Ti-M 140 190 2400 1982?-1991?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2723 uI-6 105mm 115mm 4.125in 4.52in 5.950L / 363ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2723 N-M 76.2 2500 1982-1991
⇑Ford ESD-659 N-M 1982-1991

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2724 uI-6 107mm 115mm 4.22in 4.52in 6.220L / 380ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford 2724 N-M 90 2600 1982-1991

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2725 uI-6 107mm 115mm 4.22in 4.52in 6.220L / 380ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2725 N-M 90 2600 1982-1994?
⇑Ford ESD-662 N-M 1982-1994?
Ford-Otosan 2725 N-M 104.51 140 142 2600 1994~2010
American 6N125? N-M ? 125 ? 2600 19??~20??
American 6N140? N-M 104.51 140 142 2600 1996~2008?
Beta BD6 (UK) N-M 96 128 130 2600 199?-?
⇒C-Power 6/380 N-M 140 2500? 2002?-?
⇒Lancing 2725E N-M 136 2600 1982?-1987?
⇒Lancing 2725OTO N-M 143 2600? 1994?-2008+?
⇒Lancing 2725ET T-M 185 2600 1982?-1987?
Lehman Standard SD120 N-M 120 2500 1982-1991
Lehman Super SP135 N-M 135 2500 1982-1991
⇒Lehman Super SP140? N-M 140 2600? 1991?-?
Mermaid Mariner N-M 101 135 137 2600 1987-1995+
⇒Sabre 120 CN-M 88 120 2600 1982?-1991?
⇒Sabre 135L N-M 99 135 2600 1982?-1991?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2726 uI-6 105mm 115mm 4.125in 4.52in 5.950L / 363ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2726T T-M 107.5 2400 1982-1991
⇑Ford ESD-660T T-M 1982-1991
⇑Ford 2726T T-M 150 2400? 1982-1994
⇑Ford-Otosan 2726T T-M 150 2400? 1994~2010
Lehman Super SP160 T-M 160 2400 1982-1991
Lehman Super SP185 T-M 138 185 188 2500 1982-1991
Mermaid Mistral T-M 185 2500 1982-1995+
Mermaid Majestic Ti-M 212 2500 1982-1995+
⇒Sabre 180C Ti?-M 132 180 2500 1982?-1991?
⇒Sabre 185L Ti?-M 136 185 2400 1982?-1991?
⇒Sabre 225L Ti?-M 165 225 2500 1982?-1991?

NOTES: Sometimes shown as 360 cubic inch displacement.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2726TG uI-6 105mm 115mm 4.125in 4.52in 5.950L / 363ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2726TG T-M 97 1800 1982-1991

NOTES: G = Generator Rated model.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2728T uI-6 105mm 115mm 4.125in 4.52in 5.950L / 363ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford 2728T Ti-M 149 2450 1982-1991
⇑Ford ESD-660T – 365TC Ti-M 149 2450 1982-1991
⇑Ford 2728TIM Ti-M 200? 2450? 1982-1994
⇑Ford-Otosan 2728TIM Ti-M 200? 2450? 1994~2010
Lehman Super SP225 Ti-M 225 2450 1982-1991
Lehman Super SP275 TII-M 205 275 279 2500 1982-1991
Mermaid Monarch Ti-M 250 2600 1982-1995+
Mermaid 595-TP (TurboPlus) Ti-M 184 247 250 2450 1982-1991
Mermaid Turbo Plus Ti-M 224 300 304 2500 1982-1995+
⇒Sabre 212C Ti-M 158 212 2500 1982?-1991?
⇒Sabre 225L Ti-M 165 225 2500 1982?-1991?
⇒Sabre 255C Ti-M 188 255 2500 1982?-1991?
⇒Sabre 275L Ti-M 202 275 2500 1982?-1991?
⇒Sabre 280C Ti-M 260 280 2500 1982?-1991?
⇒Sabre 320L Ti-M 235 320 2650 1982?-1991?

NOTES: Sometimes shown as 360 cubic inch displacement.


Ford-NHB “M” Series + “Brazilian”* Series (1987?-2008?) BSD Range
*Built by New Holland of Brazil under Joint-Venture with Ford/Case New Holland.
Features: Horizontal Crankshaft and Boreable “Parent Bore” Cylinders.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD-NHB BSD 333 uI-3 111.7mm 106.7mm 4.4in 4.2in 3.15L / 192ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford-NHB BSD 333 N-M 60 2500 199?-?
Beta BD3 (UK) N-M 42 56 56 2500 199?-?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD BSD 442 uI-4 ⊗mm ⊗mm ⊗in ⊗in 4.2L / ?ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford-NHB BSD 442 N-M 199?-?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD BSD 444 uI-4 ⊗mm ⊗mm ⊗in ⊗in 4.4L / ?ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford-NHB BSD 444 N-M 199?-?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD BSD 666 uI-4 ⊗mm ⊗mm ⊗in ⊗in 6.6L / ?ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford-NHB BSD 666 N-M 199?-?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD BSD 668? uI-6 ⊗mm ⊗mm ⊗in ⊗in 6.798L / ?ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford-NHB BSD 668? N-M 199?-?
⇒Sabre 350C Ti-M 257 350 2600 1982?-1991?
⇒Sabre 370L Ti-M 272 370 2600 1982?-1991?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD BSD 678 uI-6 111.8mm 132.1mm 4.4in 5.2in 7.8L / 474ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford-NHB BSD 678? N-M 1987?-1993?
Ford-NHB 678 HT T-M 1987?-1993?
Ford-NHB 678 HTA Ta-M 1987?-1993?
Beta BD8 (UK) N-M 112 150 152 2500 1987?-1993?
Lehman SP355 (Super) Ti-M 265 355 360 2600 1987?-1993?
Mermaid Manta N-M 180 2600 1987?-1993?
Mermaid Mirage Ti-M 325 2600 1987?-1993?
Mermaid Magnum Ti-M 400 2600 1987?-1993?
⇒Sabre 385C Ti-M 283 385 2500 1982?-1991?
⇒Sabre 430L Ti-M 317 430 2500 1982?-1991?

NOTES:


Ford Case New Holland “Genesis” Series (1991?-2003?) TA Range
Features: Horizontal Crankshaft and Boreable “Parent Bore” Cylinders.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD-CNH 5.0 uI-4 112mm 127mm 4.41in 5.00in 5.0L / 304ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford-CNH 5.0 N-M 1991?-2003?
Mermaid Melody-II N-M 90 2200 1995?-?
Mermaid Turbo-Melody-II Ti-M 160 2500 1995?-?
Mermaid Turbo-Four-II Ti-M 200 2500 1995?-?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD-CNH 7.5 uI-6 112mm 127mm 4.41in 5.0in 7.5L / 457ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford-CNH 7.5* N-M 170~240 2100 1991?-2003?
⇒C-Power 6/675 T-M 325? 2500? 2002?-?
Mermaid Manta-II T-M 325 2500 2002?-?
⇒Mermaid Mirage-II T-M 325 2500 2002?-?
Mermaid Magnum-II Ti-M 240* 2100 2002?-?

NOTES: Ford Years Mfr’d from TractorData.com.


Ford “Kent” Petrol Engine Dieselized by Watermota (1975?-1978?)


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
Ford A711M uI-4 81mm 77.6mm 3.189in 3.055in 1600cc / 97.6ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford A711M Block N-M 19??-19??
⇒Watermota Sea Panther Mk 2 N-M 27 2500 1975?-1978?
Westerbeke L-25 N-M 34 2800 1975-1978

NOTES: Through the 60’s and 70’s, Watermota had been marinising the Ford Kent petrol engine series (used in the Ford Anglia, Cortina, Escort, Pinto, etc.) and had been successfully marketing it for marine service as the Watermota Sea Wolf, Sea Otter, and Sea Tiger depending on displacement. By the mid 70’s, Watermota had developed the cylinder head, pistons, fuel injectors, injection pump and drive, etc. to convert those Kent 1.6L petrol engines with the A711M block to burn diesel fuel. Watermota marketed these petrol-to-diesel conversions as the Sea Panther Mk 2. Westerbeke sourced this engine from Watermota and marketed it as the Westerbeke L-25.


Ford-PSA “Peugeot XD” by Indenor “XDP” (1972?-2003?)


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
INDENOR XDP 4/75 uI-4 75mm ⊗mm ⊗in ⊗in ⊗cc / ⊗L / ⊗ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Indenor XDP 4/75 N-M 1972?-1988?
⇑Peugeot XD75 N-M 1972-1988
⇑Ford XD75? N-M 1972?-1988?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
INDENOR XDP 4/80 uI-4 80mm ⊗mm ⊗in ⊗in 1608cc / 1.6L / ⊗ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Indenor XDP 4/80 N-M 1972?-1988?
⇑Peugeot XD80 N-M 1972-1988
⇑Ford XD80? N-M 1972?-1988?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
INDENOR XDP 4/85 uI-4 85mm ⊗mm ⊗in ⊗in 1816cc / 1.8L / ⊗ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Indenor XDP 4/85 N-M 1972?-1988?
⇑Peugeot XD85 N-M 1972-1988
⇑Ford XD85? N-M 1972?-1988?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
INDENOR XDP 4/88 uI-4 88mm ⊗mm ⊗in ⊗in 1948cc / 1.9L / ⊗ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Indenor XDP 4/88 N-M 1972?-1988?
⇑Peugeot XD88 N-M 1972-1988
⇑Ford XD88? N-M 1972?-1988?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
INDENOR XDP 4/90 uI-4 90mm 83mm 3.51in 3.237in 2112cc / 2.1L / 128.93ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Indenor XDP 4/90 N-M 25-55 35-75 2000-4500 1972?-1988?
⇑Peugeot XD90 N-M 1972-1988
⇑Ford XD90? N-M 1972?-1988?
⇑Mahindra XD90? N-M 1979-2003?
⇒DNT XDP 4.90 N-M 1972?-1988?
⇒Lehman 4D46 N-M ? 46? ? 3000? 1972?-1988?
⇒Lehman 4D50 N-M 37 50 51 3000 1972?-1988?
⇒Lehman 4D61 N-M ? 61 ? 4000 1972?-1988?
⇒Stratos XD90? N-M 1972?-1988?
⇒Vetus P4-21 N-M 1972?-19??
⇒Volvo Penta MD21A N-M 45 1972?-19??

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
INDENOR XDP 6/90 uI-4 90mm 83mm 3.51in 3.237in 2112cc / 2.1L / 128.93ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Indenor XDP 6/90 N-M 1972?-1988?
⇑Peugeot XD90? N-M 1972-1988
⇑Ford XD90? N-M 1972?-1988?
⇒Volvo Penta MD31A N-M 45 1972?-19??

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
INDENOR XDP 4/9? uI-4 ⊗mm ⊗mm ⊗in ⊗in 2304cc / 2.3L / ⊗ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Indenor XDP 4/9? N-M 1972?-1988?
⇑Indenor XDP 4/9? T-M 1972?-1988?
⇑Peugeot XD2 N-M 1972-1988
⇑Peugeot XD2S T-M 1972-1988
⇑Ford XD2? N-M 1972?-1988?
⇑Ford XD2S? T-M 1972?-1988?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
INDENOR XDP 4/93? uI-4 93mm 83mm ⊗in 3.237in 2498cc / 1.9L / ⊗ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Indenor XDP 4/93? N-M 1972?-1988?
⇑Indenor XDP 4/93? T-M 1972?-1988?
⇑Indenor XDP 4/93? Ti-M 1972?-1988?
⇑Peugeot XD3 N-M 1972-1988
⇑Peugeot XD3T T-M 1972-1988
⇑Peugeot XD3TE Ti-M 1972-1988
⇑Ford XD3? N-M 1972?-1988?
⇑Ford XD3T? T-M 1972?-1988?
⇑Ford XD3TE? Ti-M 1972?-1988?

NOTES:


Ford “York” Series Diesel Engines
2400 Range (1972-1984) & FSD Range (1984-1999)

(Ford Transit)
Features: Horizontal Crankshaft, & “Parent Bore” Cylinders.
2400 Indirect Injection & FSD Direct Injection.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2401E uI-4 93.67mm 85.58mm 3.68in 3.36in 2359cc / 144ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford 2401E N-M 44? 60? 3600 1972-1984
⇒Fenwick 2401E? N-M 44? 60? 3600? 1972?-1984?
⇒Lees 2401E? N-M 44? 60? 3600? 1972?-1984?

NOTES: Indirect Injection.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD 2402E uI-6 93.67mm 85.58mm 3.68in 3.36in 3540cc / 216ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford 2402E N-M 65? 90? 3600 1972-1984
⇒Fenwick 2402E? N-M 65? 90? 3600? 1972?-1984?
⇒Lees 2402E? N-M 65? 90? 3600? 1972?-1984?

NOTES: Indirect Injection.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD FSD 425 uI-4 93.67mm 90.54mm 3.68in 3.56in 2496cc / 152.25ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford FSD 425 N-M 1984-1999
⇒Lancing FSD 2.5 N-M 65 3500 1992?-?
Mermaid Merlin N-M 70 4000 1992?-?
Mermaid Turbo-Merlin Ti-M 82 110-130 4000 1992?-?

NOTES: Direct Injection.


Ford “DuraTorq” Series (1999-?) XLD, ZSD & TDCi Ranges
(PSA, Puma & TDCi) – (Ford Transit)
Features: Horizontal Crankshaft, “Parent Bore” Cylinders & Direct Injection.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD Duratorq XLD-416 uI-4 80mm 80mm 3.146in 3.146in 1608cc / 98.08ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford XLD-416 N-M 1999?-200?
Mermaid Meteorite N-M 26 35 35 3000 2005(08)-?
Mermaid Meteor N-M 40 54 4800 2005-?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD Duratorq XLD-418 uI-4 82.5mm 82mm 3.25in 3.23in 1753cc / 107ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
⇑Ford XLD-418 N-M 1999?-200?
Mermaid Meteor-II N-M 56 4000 (1994?+)2005-?

NOTES: Parent Bore Cylinders.


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD Duratorq ZSD-422 uI-4 ⊗mm ⊗mm ⊗in ⊗in 2.2L / 133.3ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford PT-22 Ti-M 96 3500± 2005?-?
Mermaid PT-22 Ti-M 81? 110? 3500? 2005-?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD Duratorq ZSD-424 uI-4 89.9?mm 94.6?mm ⊗in ⊗in 2.4L / 146.6?ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford PT-24 Ti-M 103 3250± 2002?-?
Mermaid PT-24 Ti-M 87? 115? 3800? 2002-?

NOTES:


BASE ENGINE CYL BORE STROKE BORE STROKE DISPLACEMENT
FORD Duratorq TDCi 3.2 uI-5 89.9mm 100.7mm 3.54in 3.96in 3198cc / 195.2ci
BRAND · MODEL ASP kW BHP MHP @RPM YEARS MFR'd
Ford PT-32 Ti-M 147± 3500± 2006?-?
Mermaid PT-32 Ti?-M 147 197 200 3500 2006?-?

NOTES:
